Tractor · Unverified

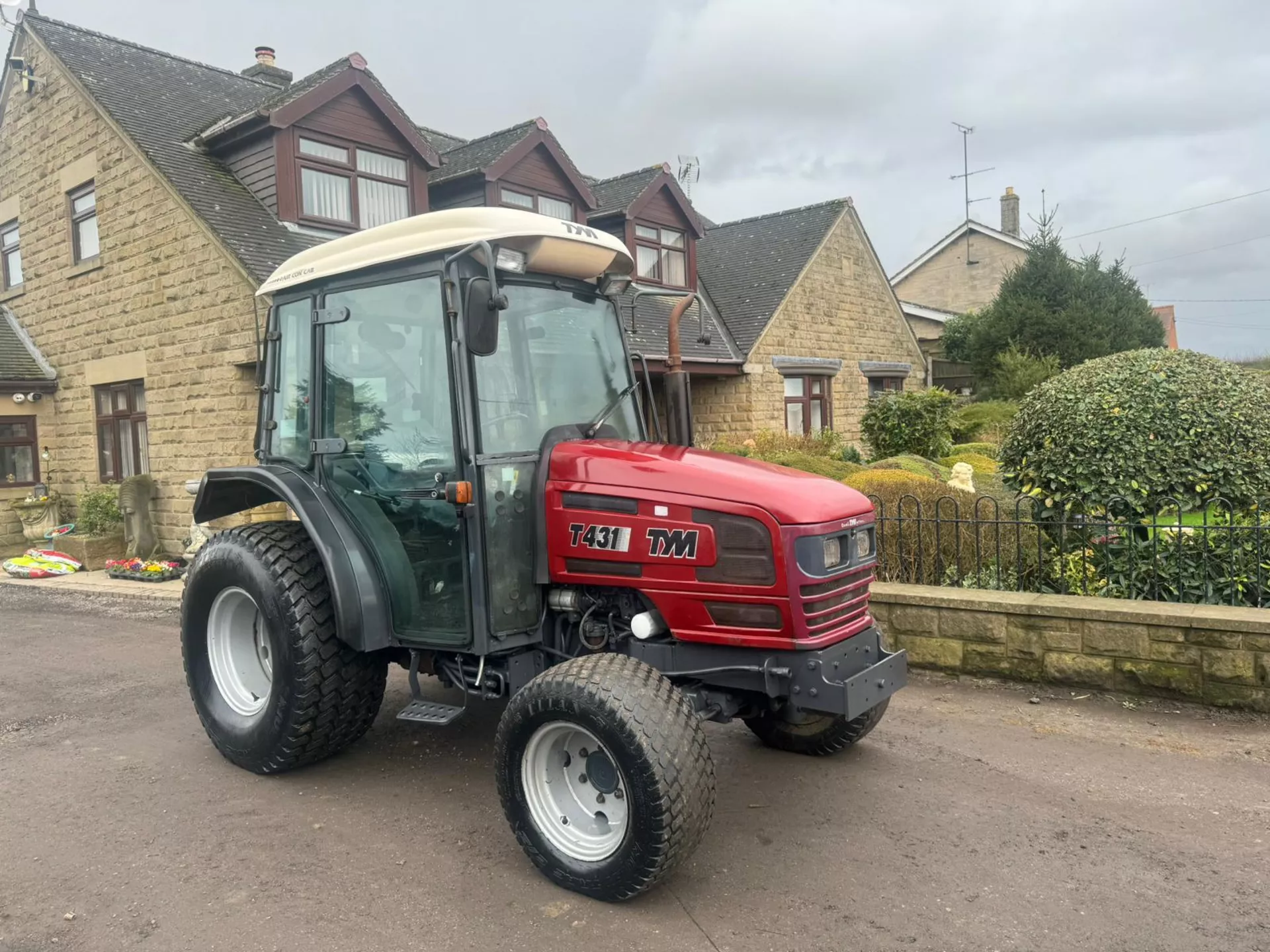

TYM T431
TYM T431 — Compact Utility tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
2301 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Cab standard.Reference
Variants
T430ROPSReference
T431CabReference
Engine
Kubota 2.2L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine32.1 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke86 x 91 mmReference
Power32.1 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchromeshReference
TypesynchromeshReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pump flow49.2 lpmReference
Controlposition and draft controlReference
Rear lift1247 kgReference
Rear PTOindependentReference
Rear PTO Type565/677/1016/1270 (1.375)Reference
Dimensions
Wheelbase190 cmReference
Weight2301 kgReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Ag front9.5-16Reference
Ag rear13.6-24Reference
Length358 cmReference
Width160 cmReference
Height (cab)243 cmReference
Ground clearance33 cmReference
Front tread132 cmReference
Rear tread127 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
