Tractor · 2006Unverified
TYM T433
TYM T433 — 400 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
4140 to 4559 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Caterpillar 2.2L 4-cyl dieselReference
Engine (gross)31.8 kWReference
Caterpillar C2.2Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Depending on market, this engine was also branded as a Perkins 404D-22.Reference
Displacement2.2 LReference
Bore/Stroke84 x 100 mmReference
Power (gross)31.8 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.7 LReference
Coolant capacity8.5 LReference
Transmission
16-speed sync shuttleReference
Typesync shuttleReference
Gears16 forward and reverseReference
Clutchsingle dry discReference
Oil capacity34.8 LReference
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range.Reference
PTO & Hydraulics
PTO (claimed)25.7 kWReference
Hydraulic system34.8 LReference
Typeopen centerReference
Capacity34.8 LReference
Valves2Reference
Pump flow33.3 lpmReference
Total flow50.7 lpmReference
Steering flow17.4 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1304 kgReference
Rear lift (at 24"/610mm)954 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel64.3 LReference
Front axle9.9 LReference
Dimensions
Wheelbase193 cmReference
Weight4140 to 4559 poundsReference
Front tire8.0-16Reference
Rear tire13.6-24Reference
Weight499 kgReference
Ag front8.0-16Reference
Ag rear13.6-24Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length358 cmReference
Width159 cmReference
Height (ROPS)258 cmReference
Height (cab)252 cmReference
ROPS Weight1877 kgReference
Cab Weight2067 kgReference
Ground clearance35 cmReference
TYM T433 attachments
front-end loaderReference
backhoeReference
T433 Serial Numbers
Location:Serial number plate on the front right of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Charging volts12Reference
Battery volts12Reference
Attachment overview
TYM LT500 loaderReference

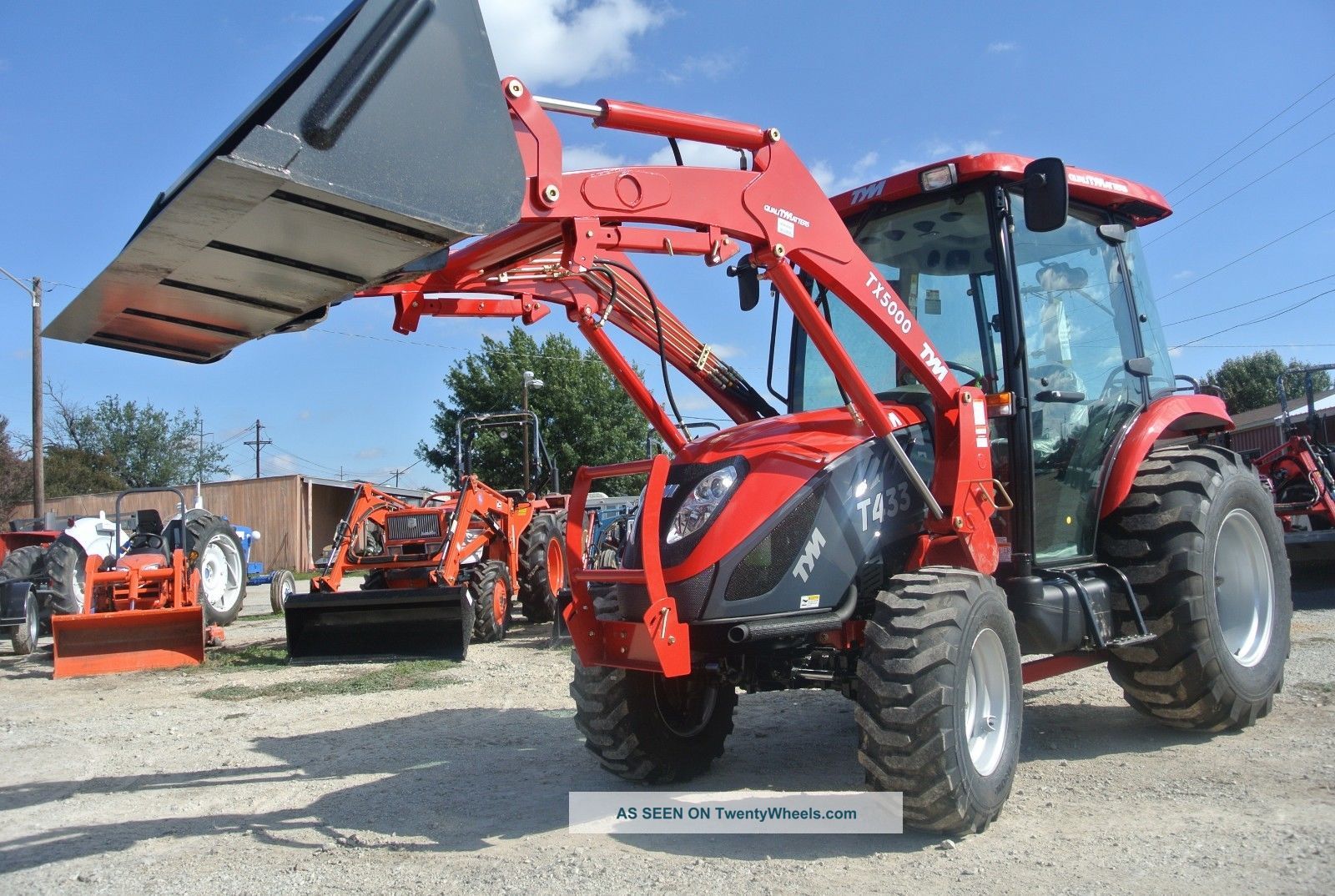

TYM TX5000 loaderReference
BackhoeReference
TYM BT400 Backhoe
Backhoe typeTYM BT400 BackhoeReference
Transport height235 cmReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1882 kgReference
Dipperstick force1206 kgReference
Speeds
Reverse speeds are 15% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
