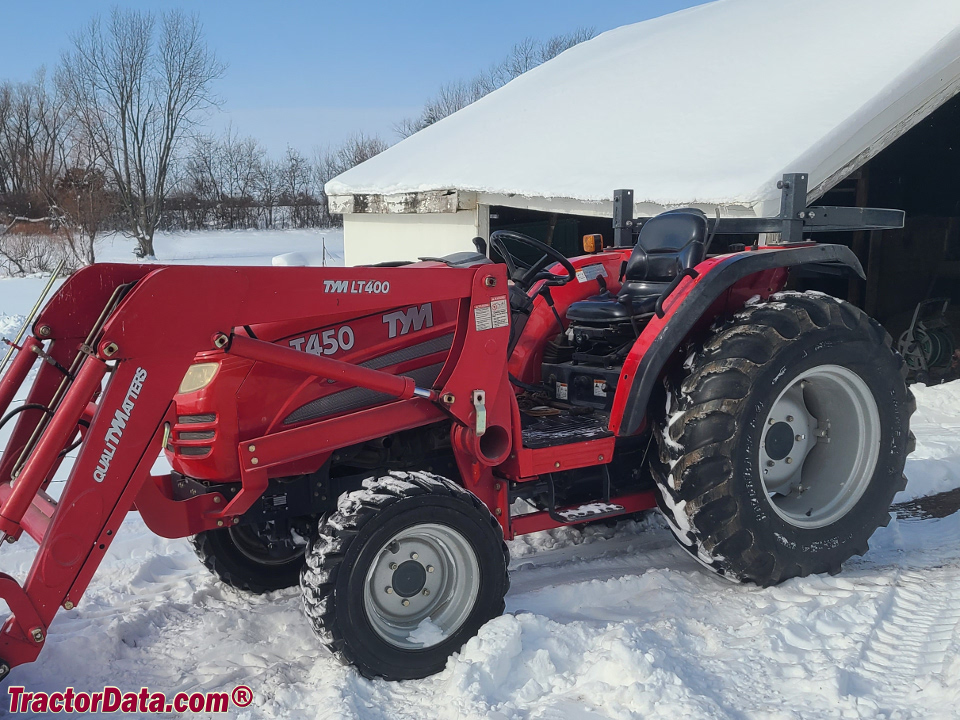

The TYM T450 is a tractor with a rated output of 38 hp — making it one of the more compact options in its class. Power comes from a 4-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 16-speed gearbox. Listed weight is 1796 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1796 kg
Catalogue coverage
Variants represented
2
Richest spec table
48 rows
Recorded power
38 hp
Recorded weight
1796 kg
Transmissions
16-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTYMReference
Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Kubota 2.2L 4-cyl dieselReference
Engine33.6 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power33.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.9 LReference
Coolant capacity9.0 LReference
Transmission
16-speedReference
Transmissionsync shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Hydraulic system34.1 LReference
Capacity34.1 LReference
Rear valves2Reference
Front valves1Reference
Pump flow29.5 lpmReference
Total flow41.4 lpmReference
Rear TypeII/IReference
Rear lift (at ends)1299 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel35.0 LReference
Dimensions
Wheelbase180 cmReference
Weight1796 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Ag front8-16Reference
Ag rear13.6-24Reference
Length322 cmReference
Width150 cmReference
Height241 cmReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
