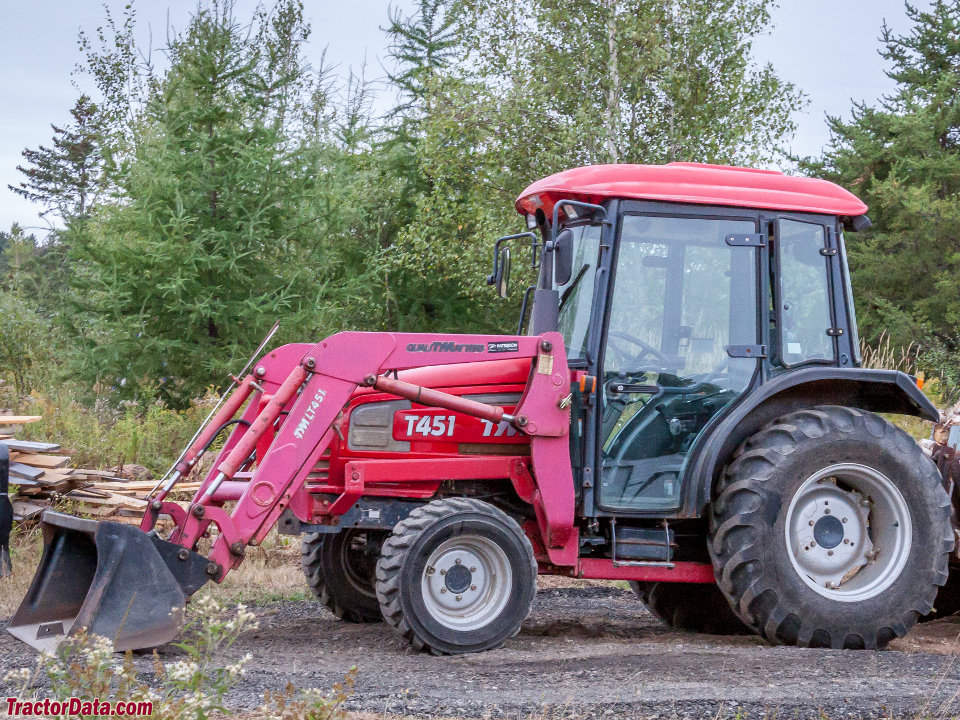

TYM T451
TYM T451 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1981 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
The TYM 451 is, basically, the TYM 450 with a cabReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Engine
Kubota 2.2L 4-cyl dieselReference
Engine33.6 kWReference
Kubota V2203Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Power33.6 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Oil capacity7.9 LReference
Coolant capacity9.0 LReference
Transmission
16-speedReference
Transmissionsync shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Hydraulic system34.1 LReference
Capacity34.1 LReference
Rear valves2Reference
Front valves1Reference
Pump flow29.5 lpmReference
Total flow41.4 lpmReference
Rear TypeI/IIReference
Rear lift (at ends)1299 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000/1400Reference
Capacities
Fuel43.5 LReference
Dimensions
Wheelbase180 cmReference
Weight1981 kgReference
Front tire9.5-16Reference
Rear tire13.6-24Reference
Ag front9.5-16Reference
Ag rear13.6-24Reference
Length370 cmReference
Width162 cmReference
Height241 cmReference
Ground clearance36 cmReference
Electrical
Charging amps50Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
