Tractor · 2014Unverified

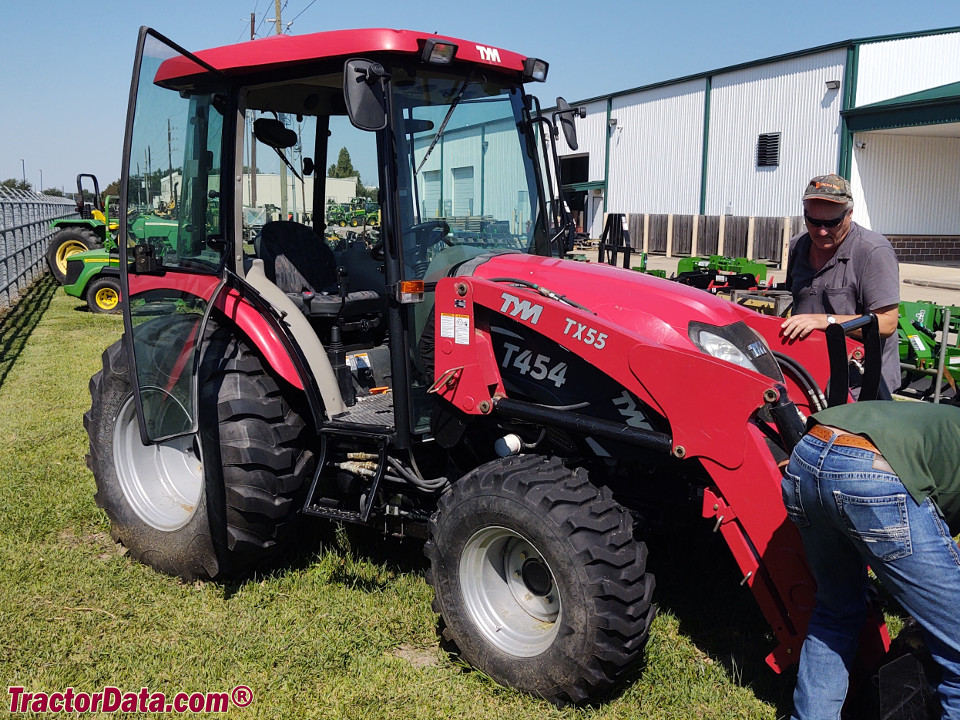

TYM T454
TYM T454 — Compact Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
1899 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
Yanmar 2.2L 4-cylReference
Engine (gross)34.3 kWReference
Yanmar 4TNV88CReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke88 x 90 mmReference
EmissionsTier IVReference
Power (gross)34.3 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.7 LReference
Coolant capacity8.5 LReference
Transmission
16-speed syncronized shuttleReference
Typesyncronized shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Oil capacity35.0 LReference
Four gears (1-4) in four ranges (LL, low, medium, high) with mechanical left hand reverser lever. Gears shifts and shuttle shifts are synchronized, using the clutch.Reference
Capacities
Fuel64.3 LReference
Front axle9.9 LReference
PTO & Hydraulics
Hydraulic system34.8 LReference
Typeopen center dual gear pumpReference
Capacity34.8 LReference
Valves2Reference
Pump flow36.0 lpmReference
Total flow54.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1503 kgReference
Rear lift (at 24"/610mm)1335 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase193 cmReference
Weight1899 kgReference
Front tire9.5-16Reference
Rear tire13.6-26Reference
Ag front9.5-16Reference
Ag rear13.6-26Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length358 cmReference
Width162 cmReference
Height (cab)276 cmReference
Ground clearance35 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Speeds
Reverse speeds are about 15% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
