Tractor · 2019Unverified

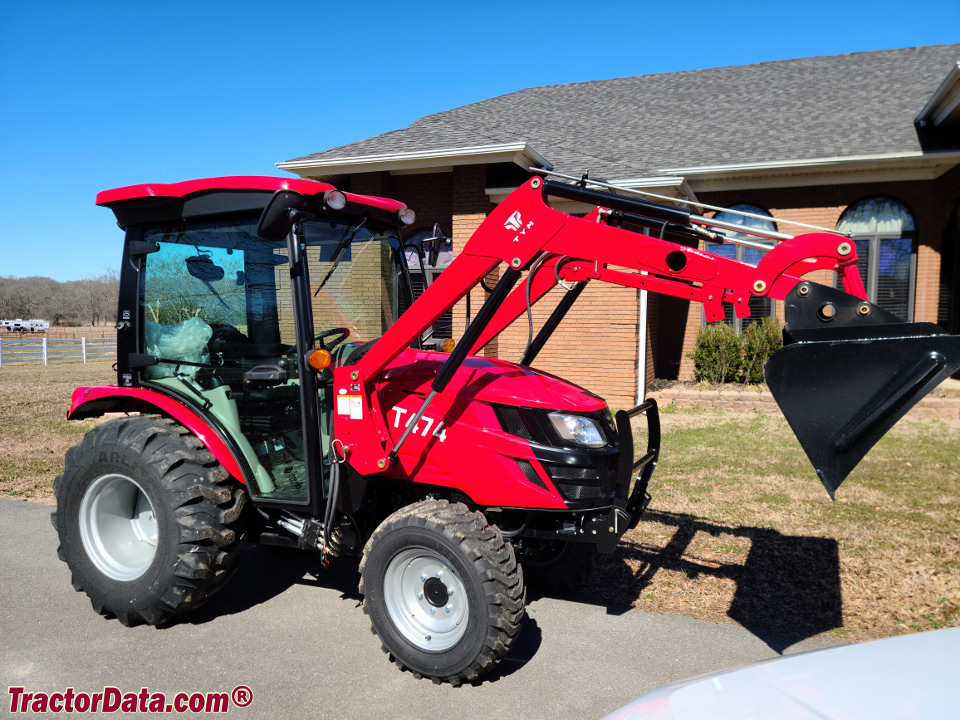

TYM T474
TYM T474 — Compact Utility tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
3230 to 3605 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank34.1 LReference
Engine (gross)36.0 kWReference
Kukje A2300N4Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)36.0 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Torque146.4 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.5 LReference
Coolant capacity6.5 LReference
Transmission
12-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears12 forward and reverseReference
Oil capacity35.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow24.2 lpmReference
Total flow41.6 lpmReference
Steering flow17.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1200 kgReference
Rear lift (at 24"/610mm)800 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase175 cmReference
Weight3230 to 3605 poundsReference
Front tire8.0-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8.0-16. Rear: 12.4-24Reference
Industrial front27x10.5-15Reference
Industrial rear12.5x20Reference
ROPS Length332 cmReference
Cab Length337 cmReference
ROPS Width138 cmReference
Cab Width149 cmReference
Height (ROPS)239 cmReference
Height (cab)234 cmReference
ROPS Weight1465 kgReference
Cab Weight1635 kgReference
Ground clearance32 cmReference
TYM T474 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging amps70Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
