Tractor · 2019Unverified

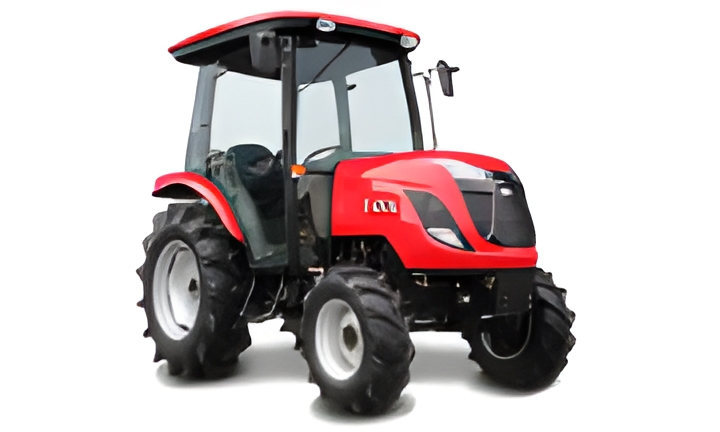

TYM T494
TYM T494 — Compact Utility tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
4012 to 4277 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank64.3 LReference
Engine (gross)36.0 kWReference
Kukje A2300N5Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)36.0 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Torque146.4 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.4 LReference
Coolant capacity6.5 LReference
Transmission
8-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears8 forward and reverseReference
Oil capacity35.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow36.0 lpmReference
Total flow54.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1777 kgReference
Rear lift (at 24"/610mm)1335 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase193 cmReference
Weight4012 to 4277 poundsReference
Front tire9.5-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 14.9-24Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front12-16.5Reference
Industrial rear17.5-24Reference
Industrial rear16.9-24Reference
Length339 cmReference
Width162 cmReference
Height (ROPS)259 cmReference
Height (cab)252 cmReference
ROPS Weight1819 kgReference
Cab Weight1940 kgReference
Ground clearance35 cmReference
TYM T494 attachments

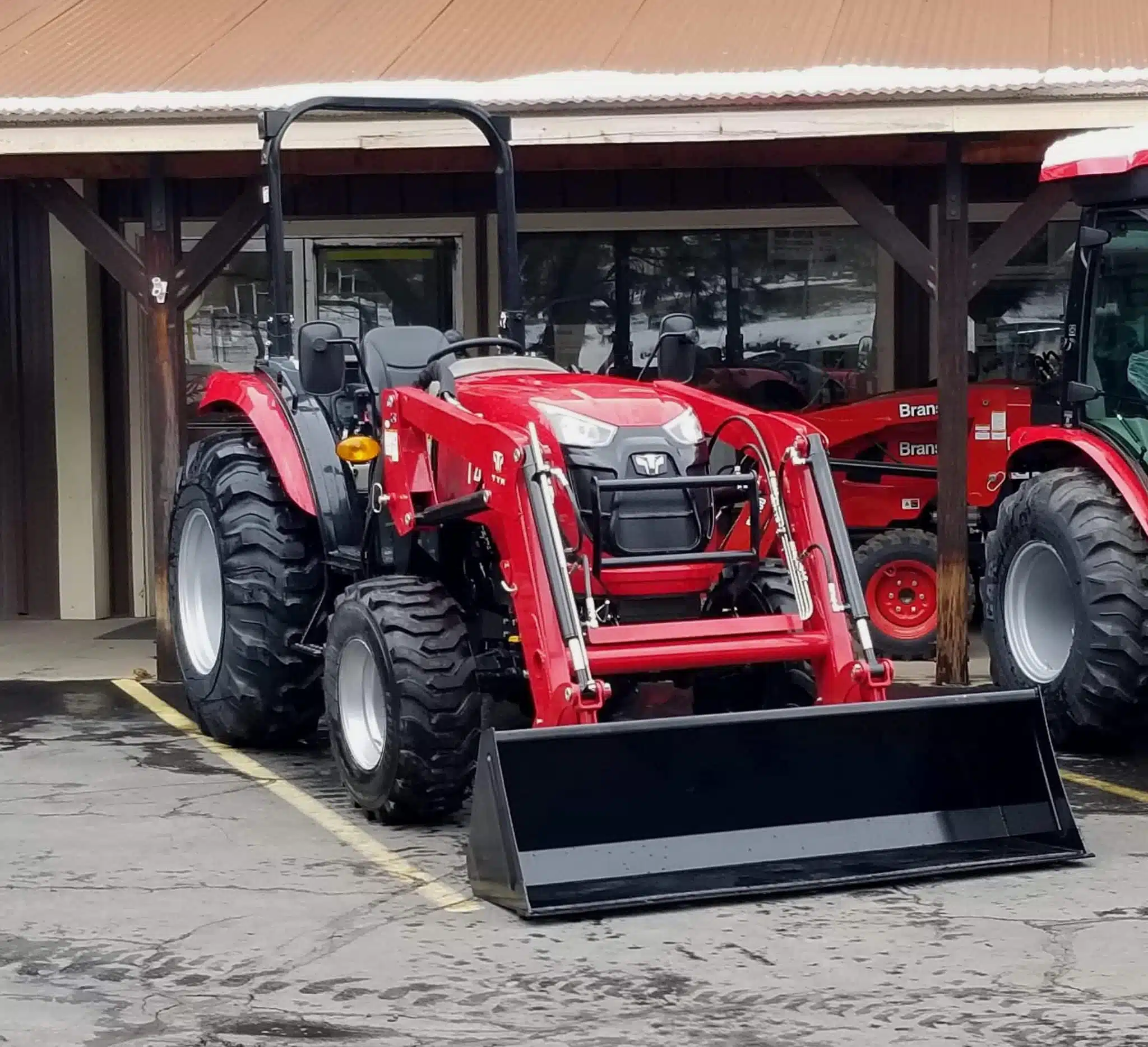

front-end loaderReference
Electrical
GroundnegativeReference
Charging amps70Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
