Tractor · 2006Unverified

TYM T503

Name: TYM T503
Brand: TYM

TYM T503 — 500 Series · 51 hp. Reference specifications; pending source verification.

The TYM T503 is a tractor with a rated power output of 51 hp, categorising it at the lighter end of its class. It was manufactured between 2006 and 2015. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. Its operating weight is listed as 4140 to 4559 pounds, with a maximum operating area of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

51 hp

Max power

50.7 hp

Weight

4140 to 4559 pounds

Catalogue coverage

Variants represented

Richest spec table

119 rows

Recorded power

51 hp

Recorded weight

499 kg

Transmissions

16-speed sync shuttle

Production years

2006-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Caterpillar 2.2L 4-cyl dieselReference

Engine (gross)37.8 kWReference

Caterpillar C2.2Reference

dieselReference

4-cylinderReference

liquid-cooled inlineReference

Depending on market, this engine was also branded as a Perkins 404D-22TReference

Displacement2.2 LReference

Bore/Stroke84 x 100 mmReference

Power (gross)37.8 kWReference

Fuel systemindirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2800Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Oil capacity6.7 LReference

Coolant capacity8.5 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,800 RPMReference

Cooling systemliquid-cooledReference

Transmission

16-speed sync shuttleReference

hydrostaticReference

Typesync shuttleReference

Gears16 forward and reverseReference

Clutchsingle dry discReference

Oil capacity34.8 LReference

Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range.Reference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

Hydrostatic transmission first offered in 2011.Reference

Transmission TypeHSTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)29.7 kWReference

Hydraulic system34.8 LReference

Typeopen centerReference

Capacity34.8 LReference

Valves2Reference

Pump flow36.0 lpmReference

Total flow54.9 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1304 kgReference

Rear lift (at 24"/610mm)954 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Capacities

Fuel64.3 LReference

Front axle9.9 LReference

Fuel tank64.4 LReference

Crankcase oil volume7.1 qtsReference

Dimensions

Wheelbase193 cmReference

Weight4140 to 4559 poundsReference

Front tire8.0-16Reference

Rear tire13.6-24Reference

Weight499 kgReference

Ag front8.0-16Reference

Ag rear13.6-24Reference

Industrial front12-16.5Reference

Industrial rear17.5L-24Reference

Length358 cmReference

Width159 cmReference

Height (ROPS)258 cmReference

ROPS Weight1877 kgReference

Cab Weight2067 kgReference

Ground clearance35 cmReference

TYM T503 attachments

front-end loaderReference

backhoeReference

T503 Serial Numbers

Location:Serial number plate on the front right of the tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps65Reference

Charging volts12Reference

Battery volts12Reference

Attachment overview

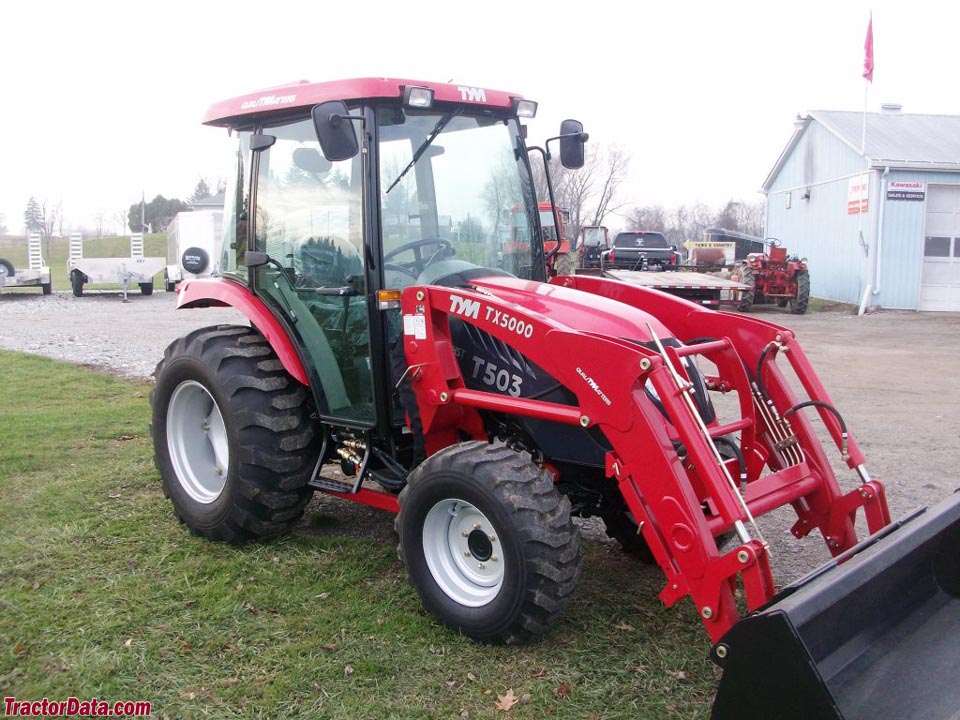

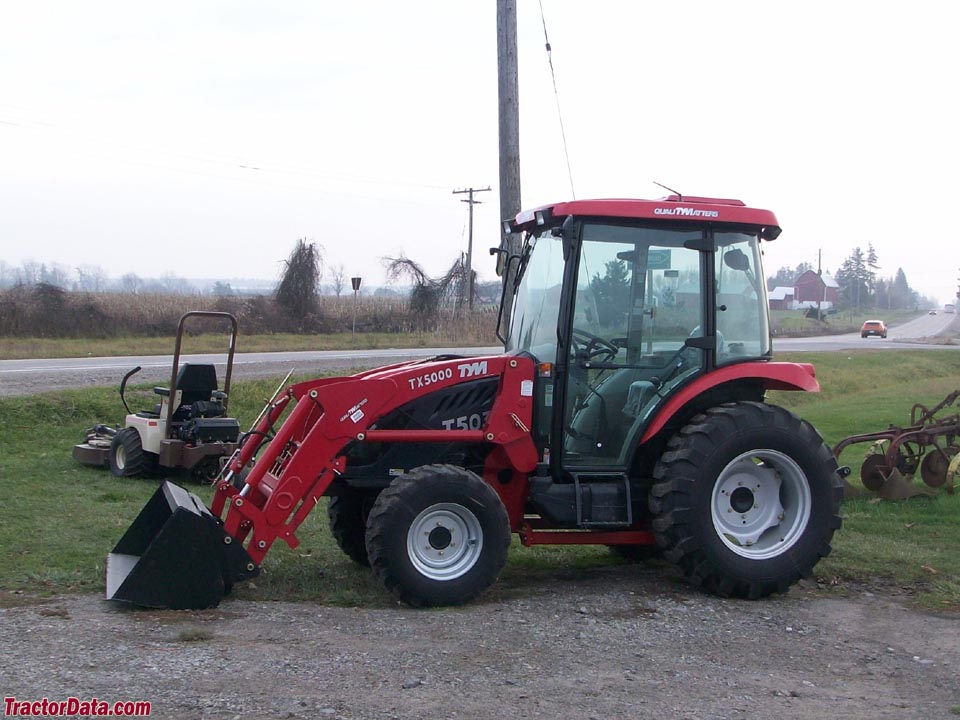

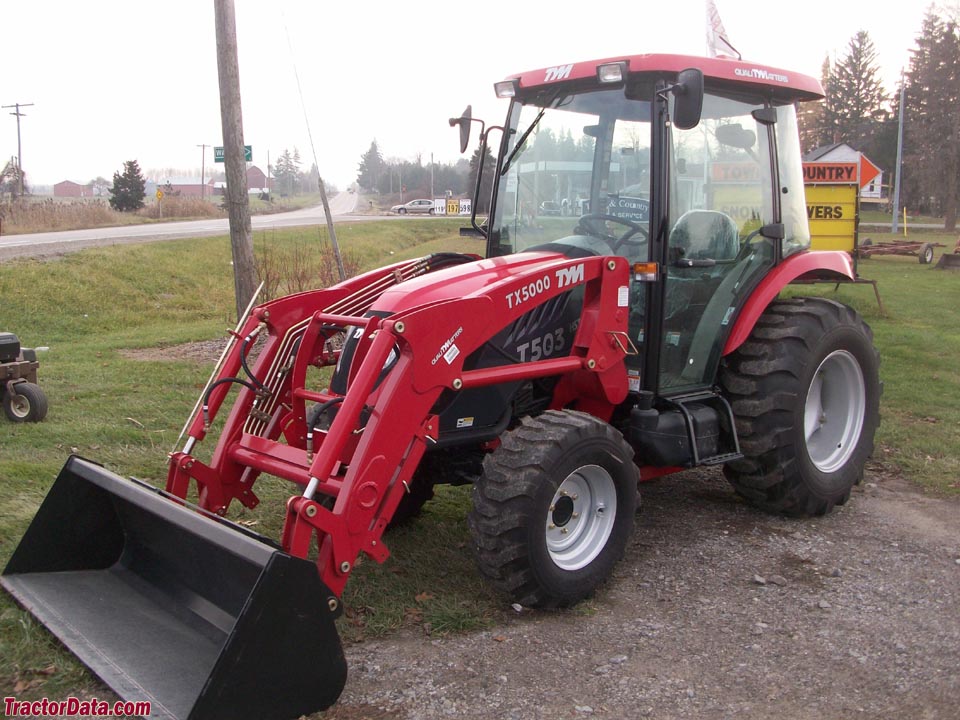

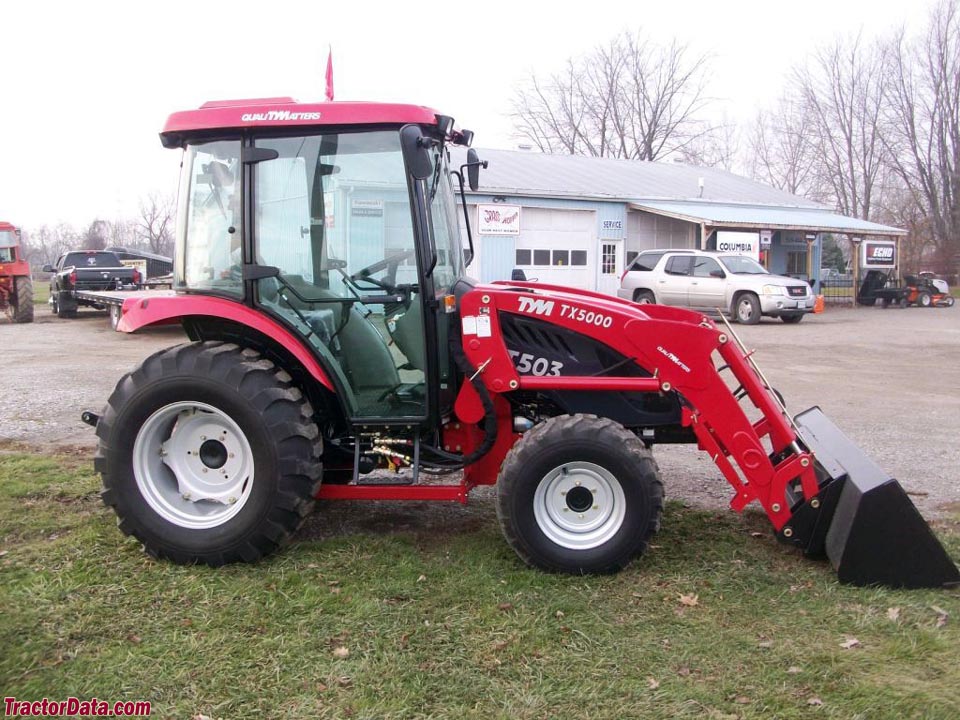

TYM LT500 loaderReference

TYM TX5000 loaderReference

BackhoeReference

TYM BT400 Backhoe

Backhoe typeTYM BT400 BackhoeReference

Transport height235 cmReference

2-Foot flat digging depth239 cmReference

Reach from pivot345 cmReference

Loading height203 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1882 kgReference

Dipperstick force1206 kgReference

Speeds

Reverse speeds are 15% slower than forward.Reference

General

Make & ModelTYMReference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureTwo-post ROPSReference

Power

Max Power50.7 hpReference

PTO

PTO Power39.8 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)14.5 gpmReference

Hydraulics Typedual gear pumpReference

Remote Valves2 ValvesReference

Steering & Implements flow5 gpm (9.5 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,304.1 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over ROPS258.8 cmReference

Overall Length358.9 cmReference

Overall Width159 cmReference

Overall weight1,877.9 kgReference

Wheels & tyres

Rear Wheel Type13.6-24Reference

Front Wheel Type8.0-16Reference

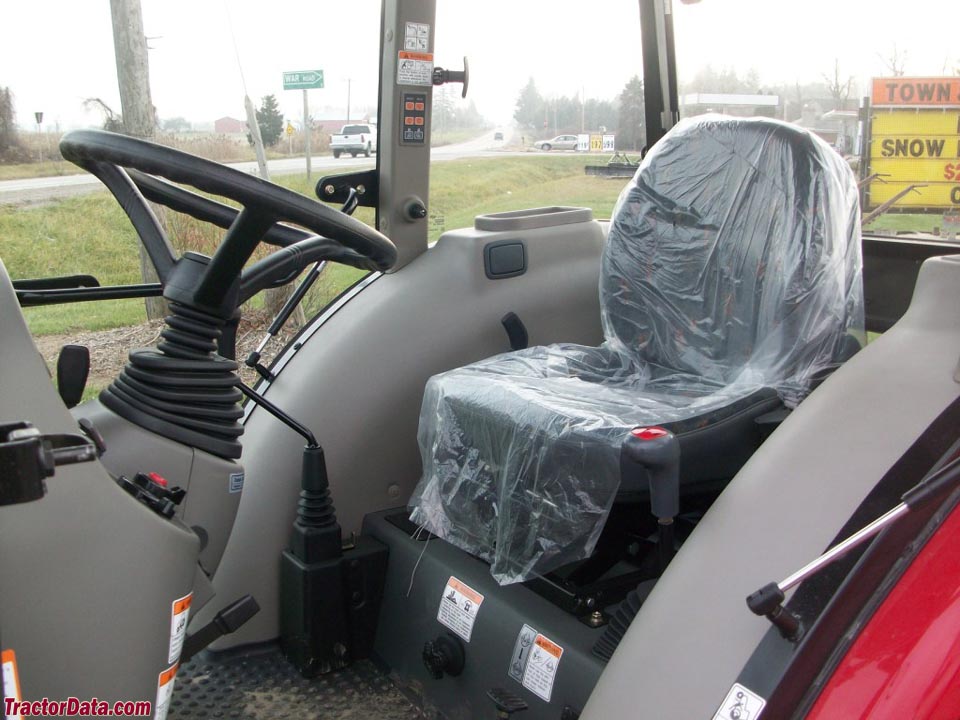

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
