Tractor · 2004Unverified

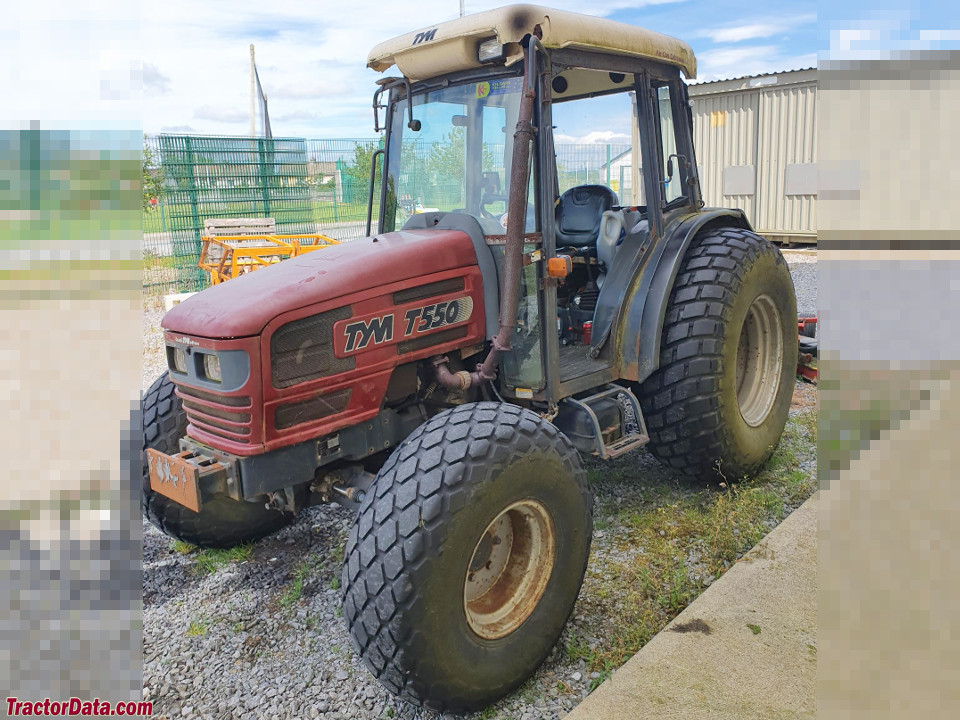

TYM T550
TYM T550 — Compact Utility tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
5379 to 5600 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank65.1 LReference
Engine41.0 kWReference
John Deere CD3029DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power41.0 kWReference
Fuel systemdirect injectionReference
Compression17.8:1Reference
Rated RPM2400Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity9.0 LReference
Transmission
16-speed sync shuttleReference
Typesync shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Four synchronized gears (1-4) in four ranges with synchronized shuttle shift. Tractor must be stopped to shift range.Reference
PTO & Hydraulics
Pump flow60.6 lpmReference
Controlposition and draft controlReference
Rear lift1927 kgReference
Rear PTOindependentReference
Rear PTO Type577/787 (1.375)Reference
Dimensions
Wheelbase210 cmReference
Weight5379 to 5600 poundsReference
Front tire11.2-20Reference
Rear tire14.9-28Reference
Ag front11.2-20Reference
Ag rear14.9-28Reference
Length403 cmReference
Width182 cmReference
Height (ROPS)256 cmReference
Height (cab)248 cmReference
ROPS Weight2439 kgReference
Cab Weight2540 kgReference
Ground clearance33 cmReference
Front tread147 cmReference
Rear tread142 cmReference
T550 Serial Numbers
Location:Serial number on the left front side of the tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Speeds
Reverse speeds are 12% slower than forward.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
