TYM T574
TYM T574 — Compact Utility tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4034 to 4299 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Power steeringReference
Wet disc brakesReference

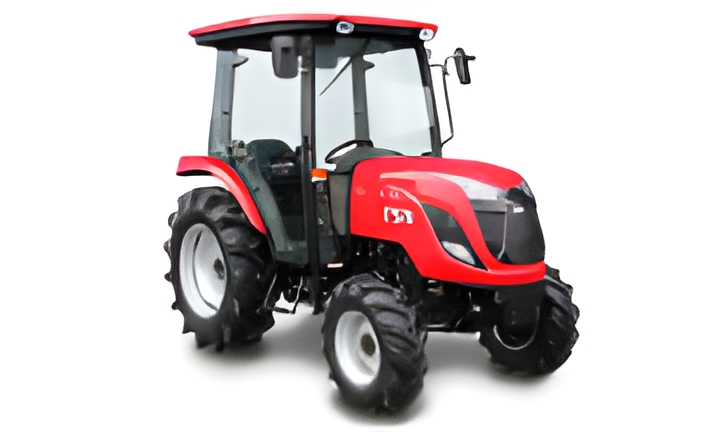

Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Kukje 2.3L 4-cyl dieselReference
Fuel tank64.3 LReference
Engine (gross)41.0 kWReference
Kukje A2300T3Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke88 x 94 mmReference
Power (gross)41.0 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Torque146.4 NmReference
Torque RPM1550Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.4 LReference
Coolant capacity6.5 LReference
Transmission
8-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears8 forward and reverseReference
Oil capacity35.0 LReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Rear valves2Reference
Pump flow29.1 lpmReference
Total flow45.0 lpmReference
Steering flow16.3 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1733 kgReference
Rear lift (at 24"/610mm)1383 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase193 cmReference
Weight4034 to 4299 poundsReference
Front tire9.5-16Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 9.5-16. Rear: 13.6-26Reference
Lawn/turf front27x10.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front12-16.5Reference
Industrial rear17.5L-24Reference
Length339 cmReference
Width162 cmReference
Height (ROPS)259 cmReference
Height (cab)252 cmReference
ROPS Weight1829 kgReference
Cab Weight1950 kgReference
Ground clearance35 cmReference
TYM T574 attachments

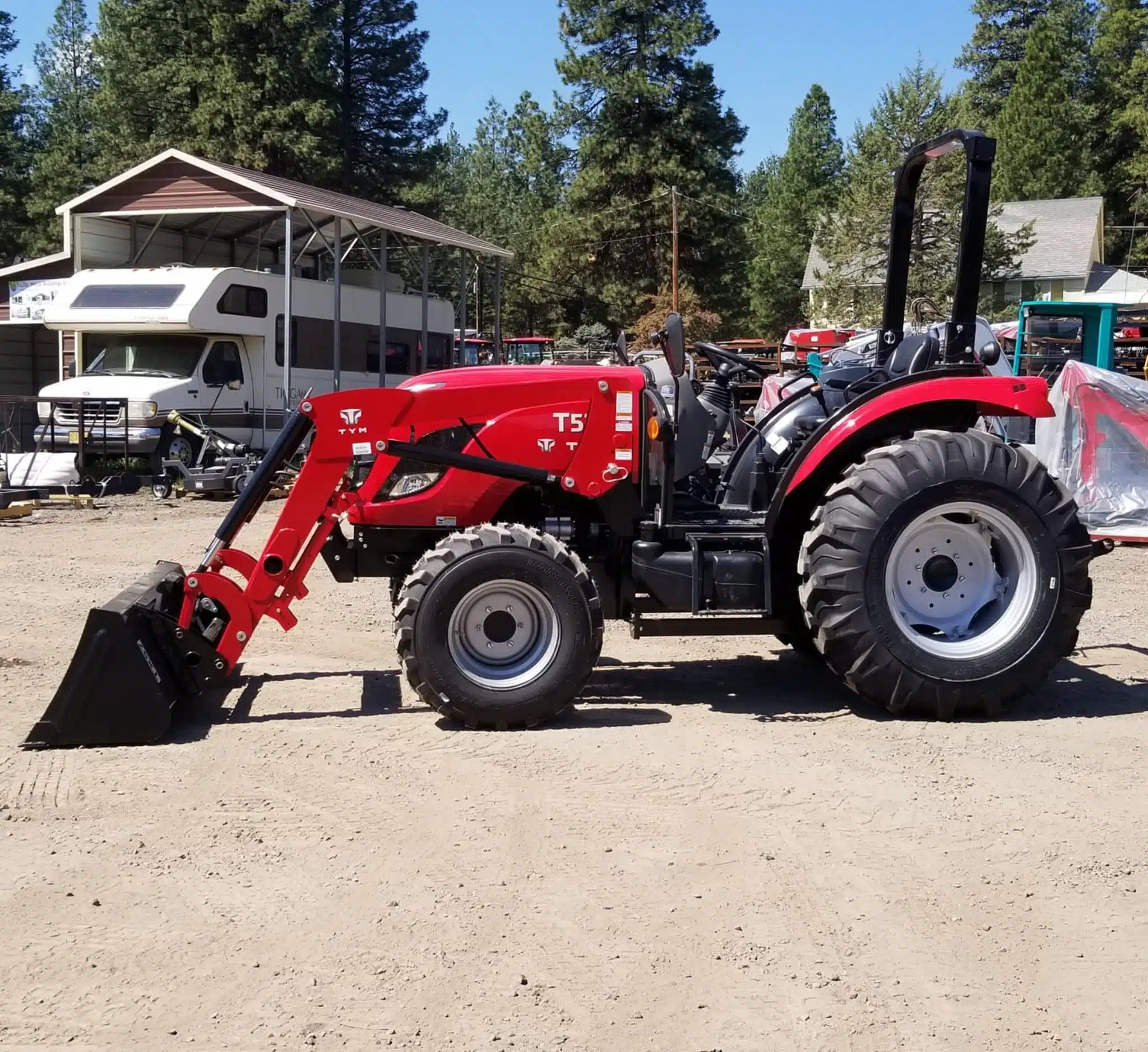

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging amps70Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
TYM BY85 Backhoe
Backhoe typeTYM BY85 BackhoeReference
Transport height231 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth262 cmReference
Reach from pivot341 cmReference
Loading height234 cmReference
Bucket Rotation151°Reference
Swing Arc180°Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
