Tractor · 2006Unverified
TYM T603
TYM T603 — Compact Utility tractor · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
5204 to 5380 pounds
Hover a source tag to verify
Overview
ManufacturerTYMReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Perkins 2.2L 4-cyl dieselReference
Engine44.7 kWReference
Perkins 404D-22TReference
dieselReference
4-cylinderReference
liquid-cooledReference
Depending on market, this engine was also branded as a Caterpillar C2.2.Reference
Displacement2.2 LReference
Bore/Stroke84 x 99 mmReference
Power44.7 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.7 LReference
Coolant capacity9.0 LReference

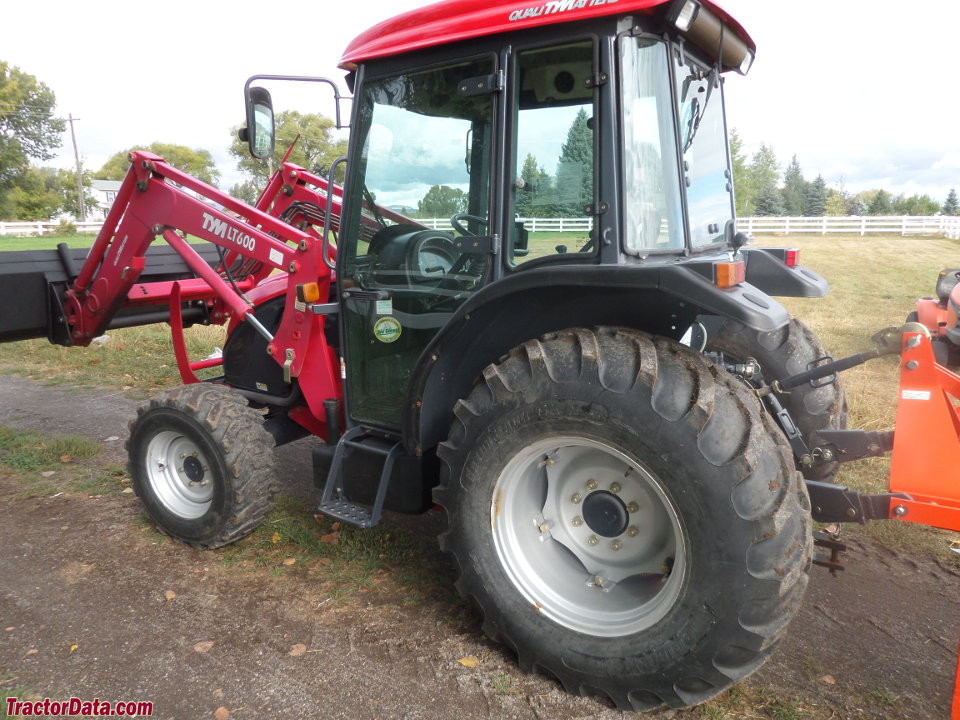

Image courtesy of Cameron PennyReference
Transmission
24-speedReference
24-speed power shuttleReference
Transmissionsynchronized shuttleReference
Gears24 forward and reverseReference
Clutchdry discReference
Typepower shuttleReference
Clutchwet discsReference
PTO & Hydraulics
PTO (claimed)34.7 kWReference
Hydraulic system41.6 LReference
Typeopen centerReference
Capacity41.6 LReference
Valves3Reference
Pump flow39.4 lpmReference
Total flow57.2 lpmReference
Steering flow17.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)1936 kgReference
Rear lift (at 24"/610mm)1430 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel71.9 LReference
Dimensions
Wheelbase210 cmReference
Weight5204 to 5380 poundsReference
Front tire9.5-20Reference
Rear tire14.9-28Reference
Ag front9.5-20Reference
Ag rear14.9-28Reference
Lawn/turf front31/13.5-15Reference
Lawn/turf rear540 (1.375)Reference
Industrial front12-16.5Reference
Industrial rear16.9-24Reference
Length403 cmReference
Width180 cmReference
Height248 cmReference
ROPS Weight2360 kgReference
Cab Weight2440 kgReference
Ground clearance39 cmReference
TYM T603 attachments

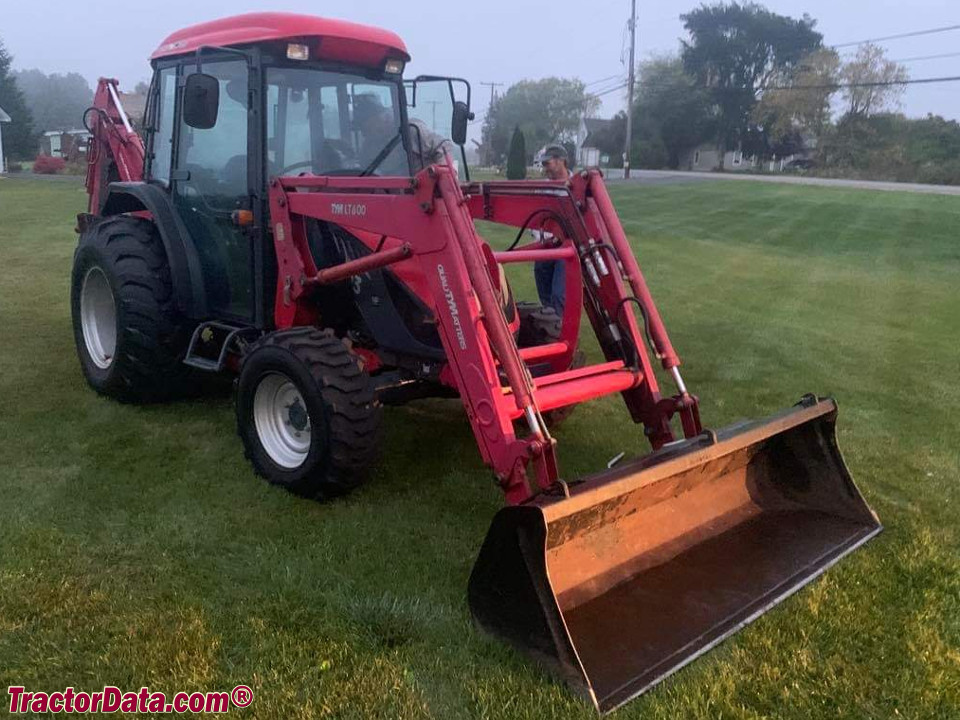

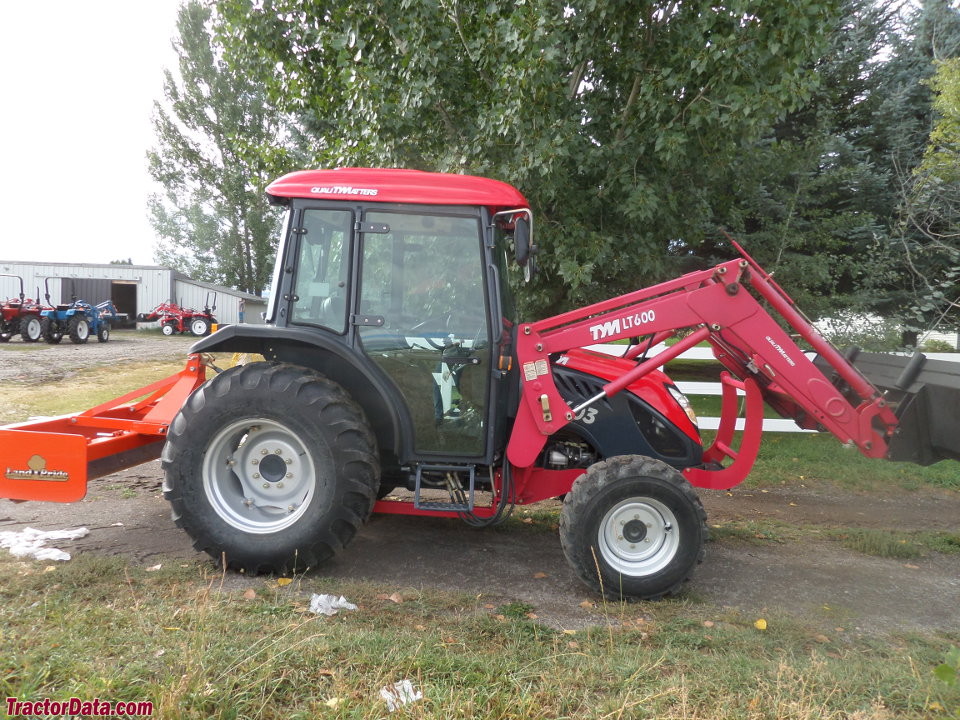

front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps65Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
