Tractor · 2019Unverified

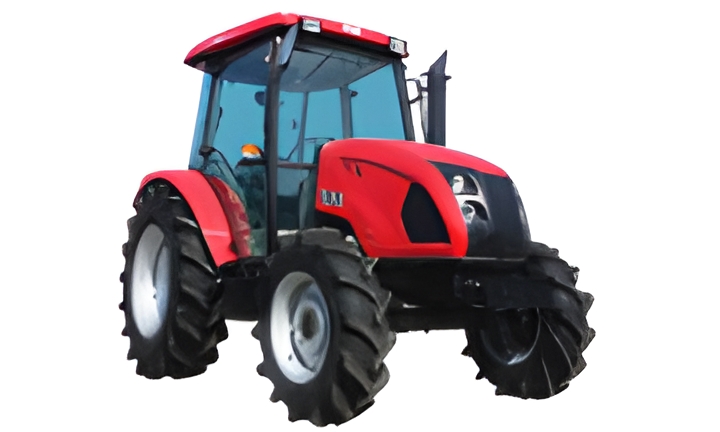

TYM T654

Name: TYM T654
Brand: TYM

TYM T654 — Utility tractor · 67 hp. Reference specifications; pending source verification.

The TYM T654 tractor features a rated power of 67 hp, a mid-range power output for its class. Manufactured in 2019, it is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine paired with a 24-speed gearbox. The T654 has an operating weight of 2519 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

67 hp

Max power

67 hp

Weight

2519 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

67 hp

Recorded weight

2519 kg

Transmissions

24-speed sync shuttle

Production years

2019-2019

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Utility tractorReference

Power steeringReference

Wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Deutz 2.9L 4-cyl dieselReference

Fuel tank70.0 LReference

Engine (gross)50.0 kWReference

Deutz TCD2.9L4Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke92 x 110 mmReference

Power (gross)50.0 kWReference

Fuel systemcommon rail direct injectionReference

Air cleanerdryReference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity8.0 LReference

Coolant capacity10.0 LReference

Fuel TypeDieselReference

No of Cylinders4Reference

Rated engine speed2,200 rpmReference

AspirationTurboReference

Cooling system10.6 qtReference

Transmission

24-speed sync shuttleReference

24-speed power shuttleReference

Typesync shuttleReference

Gears24 forward and reverseReference

Oil capacity42.0 LReference

Typepower shuttleReference

Transmission TypeHSTReference

forward and reverse optionsF24xR24Reference

forward speed range39.1 km/hReference

Wheel Drive4WDReference

ClutchDry Single Plate _ M\\nWet Multi Plate _ PSReference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

Typeopen centerReference

Pump flow39.0 lpmReference

Total flow60.9 lpmReference

Steering flow22.0 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)1936 kgReference

Rear lift (at 24"/610mm)1430 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase214 cmReference

Weight2519 kgReference

Length395 cmReference

Width183 cmReference

Height (cab)254 cmReference

Ground clearance43 cmReference

TYM T654 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging amps95Reference

Battery volts12Reference

Alternator size95 AReference

General

Make & ModelDeutz @ TCD2.9L4Reference

Differential lockYesReference

SCV controlJoystick: AvailableReference

Capacities

Capacity177 cu. in.Reference

Front Axle capacity16.3 LReference

Crankcase oil volume8.5 qtReference

Power

Max Power67 hpReference

PTO

PTO Power61.9 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlElectric/HydroReference

Rear PTO RPM1,000 rpmReference

Steering & brakes

BrakesWet DiscReference

Steering typeHydrostaticReference

Hydraulics

Pump Rated Output (total)60.9 l/minReference

Remote Valves2Reference

Steering & Implements flow5.8 gpm (10.3 gpm)Reference

Rear Hitch category (SAE designation)3-Point Hitch | Category IIReference

Rear Hitch maximum lift capacity1,936.8 kgReference

Dimensions & weight

Height Over ROPS254.5 cmReference

Overall Width183.9 cmReference

Turning radius358.9 cmReference

Overall weight2,519.7 kgReference

Operator station

Cab AvailabilitytrueReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
