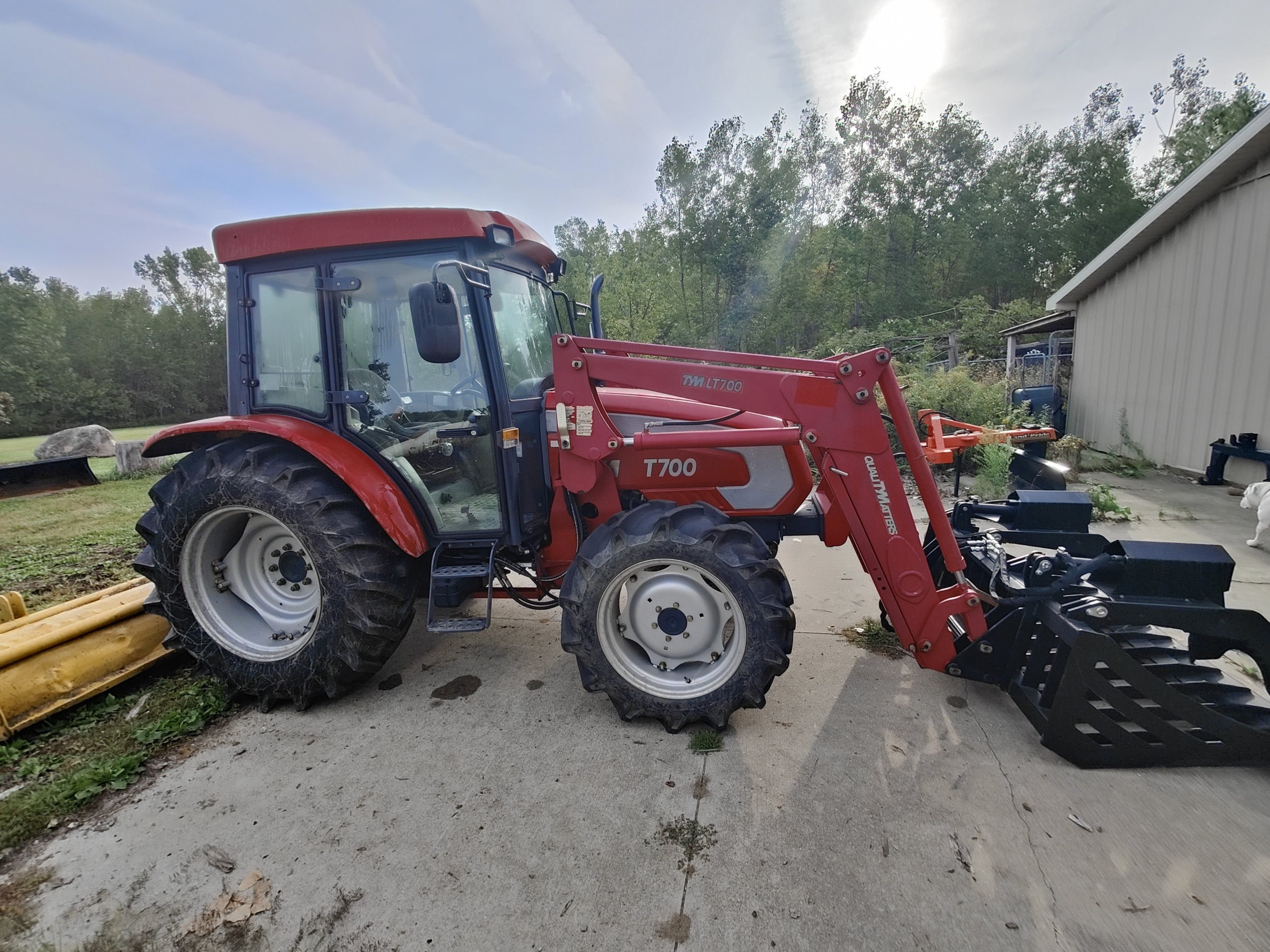

The TYM T700 is a compact tractor rated at 64 horsepower, classified among smaller models in its category. Manufactured from 2002 to 2009, this tractor is equipped with a 3-cylinder diesel liquid-cooled engine, which transmits power through a hydrostatic transmission to the four-wheel drive system. The listed weight of the T700 is 3020 kg, and it is designed for use on tracts of land up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
3020 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
64 hp
Recorded weight
3020 kg
Transmissions
16-speed sync shuttle
Production years
2002-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTYMReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine52.2 kWReference
John Deere 3029DFReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Power52.2 kWReference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity9.3 LReference
Transmission
16-speed sync shuttleReference
Typesync shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)47.4 kWReference
Hydraulic system45.0 LReference
Capacity45.0 LReference
Rear valves3Reference
Front valves1Reference
Pump flow39.9 lpmReference
Total flow59.3 lpmReference
Rear TypeIIReference
Rear lift (at ends)1963 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Capacities
Fuel105.6 LReference
Dimensions
Wheelbase211 cmReference
Weight3020 kgReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Ag front11.2-24Reference
Ag rear16.9-30Reference
Length404 cmReference
Width195 cmReference
Height259 cmReference
Ground clearance44 cmReference
Electrical
GroundnegativeReference
Charging amps50Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
