Tractor · 2010Unverified

TYM T723

Name: TYM T723
Brand: TYM

TYM T723 — Utility tractor · 74 hp. Reference specifications; pending source verification.

The TYM T723 is a tractor with a rated output of 74 hp, placing it centrally within its class in terms of power. Manufactured in 2010, it features a 3-cylinder turbocharged diesel liquid-cooled engine driving four-wheel drive through a hydrostatic transmission. The tractor's listed weight is 2617 kg, with an intended application on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

74 hp

Max power

74 hp

Weight

2617 kg

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

74 hp

Recorded weight

2617 kg

Transmissions

24-speed power shuttle

Production years

2010-2010

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerTYMReference

Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Cab standard with heat and air-conditioning.Reference

Engine

Perkins 3.3L 3-cyl dieselReference

Engine (gross)55.2 kWReference

Perkins 1103C-33TReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Power (gross)55.2 kWReference

Fuel systemdirect injectionReference

Air cleanerdual dry elementReference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity7.0 LReference

Coolant capacity9.5 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,200 RPMReference

Cooling systemliquid-cooledReference

Transmission

24-speed power shuttleReference

24-speed sync shuttleReference

Typepower shuttleReference

Gears24 forward and reverseReference

Clutchsingle dry discReference

Oil capacity46.9 LReference

Four synchronized gears in three ranges with power shuttle and creeper range.Reference

Typesync shuttleReference

Transmission TypePower ShuttleReference

forward and reverse optionsPower Shuttle : 24 F and 24 R | Sync Shuttle : 24 F and 24 RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)48.5 kWReference

Hydraulic system46.9 LReference

Typeopen centerReference

Capacity46.9 LReference

Valves3Reference

Pump flow42.0 lpmReference

Total flow60.2 lpmReference

Steering flow18.2 lpmReference

Rear Type2Reference

Controlposition and draft controlReference

Rear lift (at ends)1964 kgReference

Rear lift (at 24"/610mm)1511 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2200Reference

Engine RPM540E@1584Reference

Capacities

Fuel71.9 LReference

Front axle16.3 LReference

Fuel tank71.9 LReference

Crankcase oil volume7.4 qtsReference

Dimensions

Wheelbase211 cmReference

Weight2617 kgReference

Front tire11.2-24Reference

Rear tire16.9-30Reference

Ag front11.2-24Reference

Ag rear16.9-30Reference

Length378 cmReference

Width197 cmReference

Height (cab)259 cmReference

Ground clearance46 cmReference

TYM T723 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps75Reference

Charging volts12Reference

Battery volts12Reference

Attachment overview

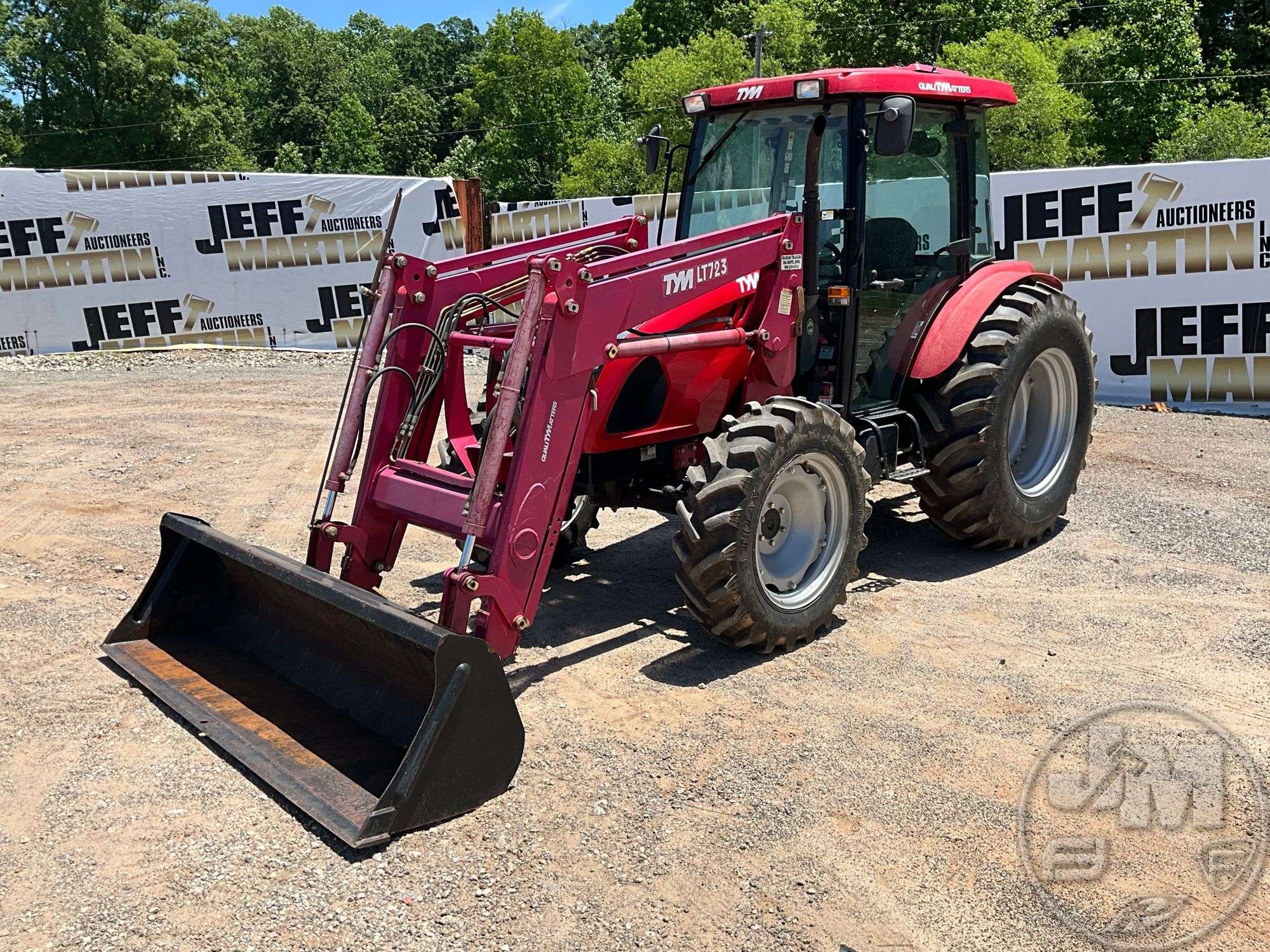

TYM LT723 loaderReference

TYM TX7200 loaderReference

General

Make & ModelTYMReference

Power

Max Power74 hpReference

PTO

PTO Power65 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typeHydrostatic PowerReference

Hydraulics

Pump Rated Output (total)15.9 gpmReference

Hydraulics TypeDual Gear PumpReference

Remote Valves3 ValvesReference

Steering & Implements flow4.8 gpm (11.1 gpm)Reference

Rear Hitch category (SAE designation)Category 2Reference

Rear Hitch maximum lift capacity1,964.1 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab259.1 cmReference

Overall Length378.5 cmReference

Overall Width197.1 cmReference

Overall weight2,617.7 kgReference

Wheels & tyres

Rear Wheel TypeAg rear - 16.9-30Reference

Front Wheel TypeAg front - 11.2-24Reference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
