Tractor · 2014Unverified

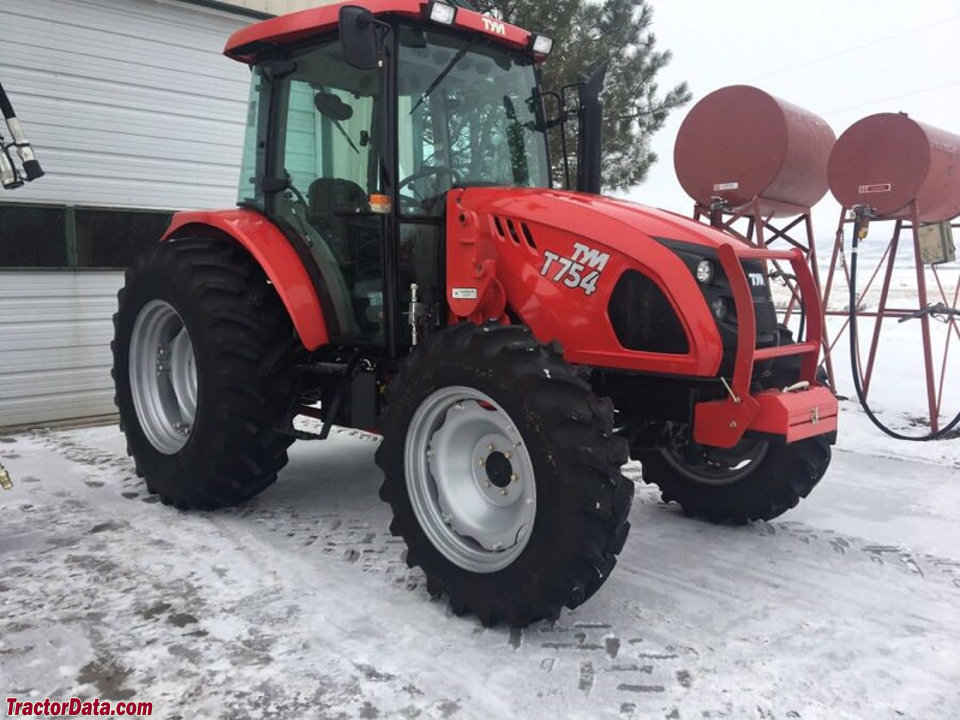

TYM T754
TYM T754 — Utility tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
2617 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Deutz 2.9L 4-cylReference
Engine (gross)55.2 kWReference
Deutz TCD 2.9Reference
turbochargedReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke91 x 109 mmReference
EmissionsTier IVReference
Emission controlexhaust gas recirculation and diesel oxidation catalystReference
Power (gross)55.2 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
Torque299.7 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.0 LReference
Coolant capacity9.5 LReference
Transmission
16-speed syncronized shuttleReference
Typesyncronized shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
Oil capacity47.0 LReference
Four gears (1-4) in four ranges (LL, low, medium, high) with mechanical left hand reverser lever. Gears shifts and shuttle shifts are synchronized, using the clutch.Reference
PTO & Hydraulics
PTO (claimed)48.5 kWReference
Hydraulic system46.9 LReference
Typeopen center dual gear pumpReference
Capacity46.9 LReference
Valves2Reference
Pump flow42.0 lpmReference
Total flow60.2 lpmReference
Steering flow18.2 lpmReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/540E (1.375)Reference
Capacities
Fuel90.1 LReference
Front axle16.3 LReference
Dimensions
Wheelbase218 cmReference
Weight2617 kgReference
Front tire11.2-24Reference
Rear tire16.9-30Reference
Ag front11.2-24Reference
Ag rear16.9-30Reference
Industrial front15-19.5Reference
Industrial rear18.4-24Reference
Length400 cmReference
Width186 cmReference
Height (ROPS)264 cmReference
Ground clearance42 cmReference
TYM T754 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps95Reference
Charging volts12Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
