Tractor · 2013Unverified

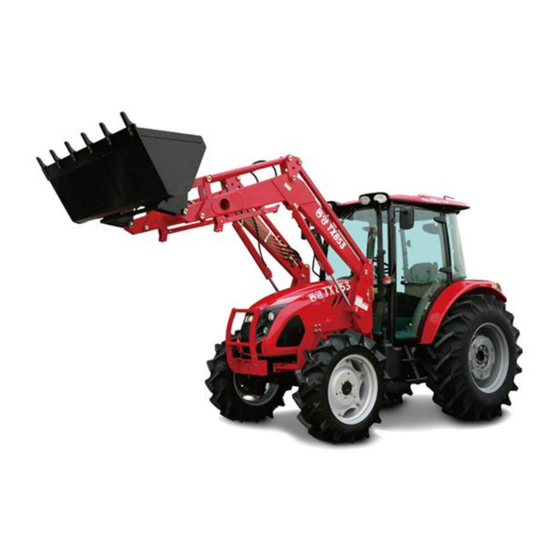

TYM TX753
TYM TX753 — Utility tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3064 kg
Hover a source tag to verify
Overview
ManufacturerTYMReference
Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab standard.Reference
Engine
Cummins 3.3L 4-cyl dieselReference
Engine55.9 kWReference
Cummins B3.3Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke95 x 115 mmReference
Power55.9 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
PTO & Hydraulics
Rear PTO Type540/750/1000Reference
Dimensions
Weight3064 kgReference
Length393 cmReference
Width194 cmReference
Height (cab)271 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
