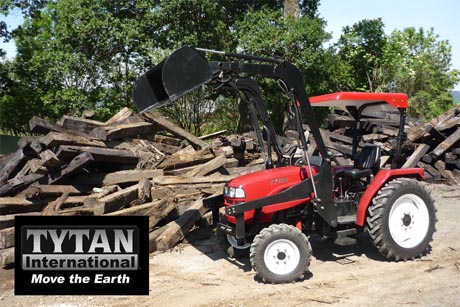

The Tytan 304 is a tractor with a rated output of 30 hp, classifying it as one of the more compact options in its class. It is powered by a 3-cylinder diesel engine, which is transmitted to the four-wheel drive via an 8-speed gearbox. The listed weight range of the Tytan 304 is 2380 to 4560 pounds. It is designed for tasks that cover areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2380 to 4560 pounds
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
30 hp
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTytanReference
Farm/Agricultural tractorReference
Built in Shandong, ChinaReference
Four-wheel driveReference
SteeringpowerReference
Mechanical dry shoes brakesReference
Canopy ROPSReference
Engine
Changchai 3-cyl dieselReference
Fuel tank30.3 LReference
Engine22.4 kWReference
Changchai ZN309TReference
dieselReference
3-cylinderReference
Power22.4 kWReference
Air cleanerpaper elementReference
Rated RPM2200Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
Valves4Reference
Total flow21.7 lpmReference
Rear Type1Reference
Rear lift544 kgReference
Rear PTO Type540/760Reference
Dimensions
Weight2380 to 4560 poundsReference
Front tire6.00x14Reference
Rear tire20x8.3Reference
Ag front6.00x14Reference
Ag rear20x8.3Reference
Width124 cmReference
Width162 cmReference
Ground clearance25 cmReference
1079 kgReference
1533 kgReference
2068 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
