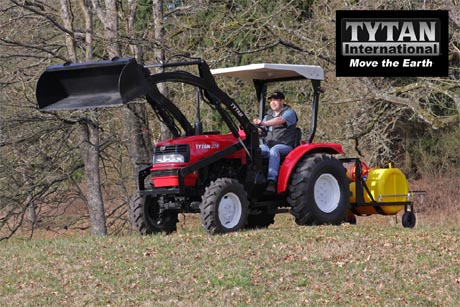

The Tytan 334 is a tractor model with a rated output of 33 hp, one of the more compact options in its class. Powered by a 3-cylinder diesel engine, it features four-wheel drive and an 8-speed gearbox. The listed weight of the Tytan 334 ranges from 2777 to 5200 pounds. It is intended for use on jobs covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
2777 to 5200 pounds
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
33 hp
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTytanReference
Farm/Agricultural tractorReference
Built in Shandong, ChinaReference
Four-wheel driveReference
SteeringpowerReference
Mechanical dry shoes brakesReference
Canopy ROPSReference
Engine
Changchai 3-cyl dieselReference
Fuel tank30.3 LReference
Engine24.6 kWReference
Changchai ZN309TReference
dieselReference
3-cylinderReference
Power24.6 kWReference
Air cleanerpaper elementReference
Rated RPM2200Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
Valves2Reference
Total flow32.2 lpmReference
Rear Type1Reference
Rear lift680 kgReference
Rear PTO Type540/760Reference
Dimensions
Weight2777 to 5200 poundsReference
Front tire7.50x16Reference
Rear tire18x12.9Reference
Ag front7.50x16Reference
Ag rear18x12.9Reference
Length274 cmReference
Width124 cmReference
Width162 cmReference
Height152 cmReference
Ground clearance29 cmReference
1259 kgReference
1823 kgReference
2358 kgReference
Electrical
Charging systemalternatorReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
