Tractor · Unverified

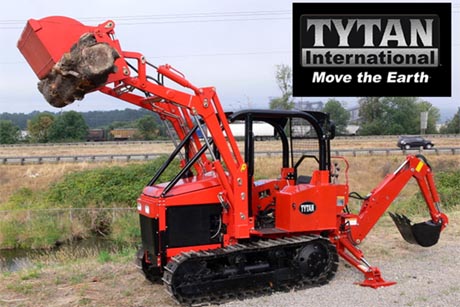

Tytan 406
Tytan 406 — Agricultural Crawler tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
5950 to 7130 pounds
Hover a source tag to verify
Overview
ManufacturerTytanReference
Agricultural Crawler tractorReference
Built in Shandong, ChinaReference
DrivecrawlerReference
SteeringpowerReference
Mechanical dry band brakesReference
ROPS cageReference
Engine
3-cyl dieselReference
Fuel tank30.3 LReference
Engine29.8 kWReference
395TReference
dieselReference
3-cylinderReference
Power29.8 kWReference
Air cleanerpaper elementReference
Rated RPM2000Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Valves2Reference
Total flow32.2 lpmReference
Rear Type1Reference
Rear lift748 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight5950 to 7130 poundsReference
TracksReference
Length292 cmReference
Width162 cmReference
Height213 cmReference
Ground clearance25 cmReference
2698 kgReference
3036 kgReference
3234 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
