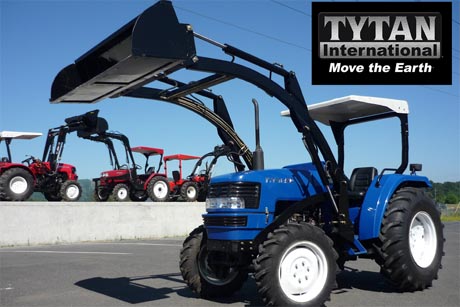

The Tytan 504 is a tractor with a rated output of 50 hp, classifying it among the more compact options in its class. It is equipped with a 3-cylinder diesel engine, which powers a four-wheel drive system via an 8-speed gearbox. The tractor's listed weight ranges from 4495 to 7139 pounds, and it is suited to jobs covering areas of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
4495 to 7139 pounds
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
50 hp
Transmissions
8-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerTytanReference
Utility tractorReference
Built in Shandong, ChinaReference
Four-wheel driveReference
SteeringpowerReference
Mechanical dry shoes brakesReference
Canopy ROPSReference
Engine
3-cyl dieselReference
Fuel tank45.4 LReference
Engine37.3 kWReference
3105-T2Reference
dieselReference
3-cylinderReference
Power37.3 kWReference
Air cleanerpaper elementReference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and reverseReference
PTO & Hydraulics
Valves4Reference
Total flow41.6 lpmReference
Rear Type1/2Reference
Rear lift793 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Dimensions
Weight4495 to 7139 poundsReference
Front tire8.3x20Reference
Rear tire14.9x24Reference
Ag front8.3x20Reference
Ag rear14.9x24Reference
Width162 cmReference
Width185 cmReference
Ground clearance37 cmReference
2038 kgReference
2703 kgReference
3238 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
