Tractor · 1969Unverified

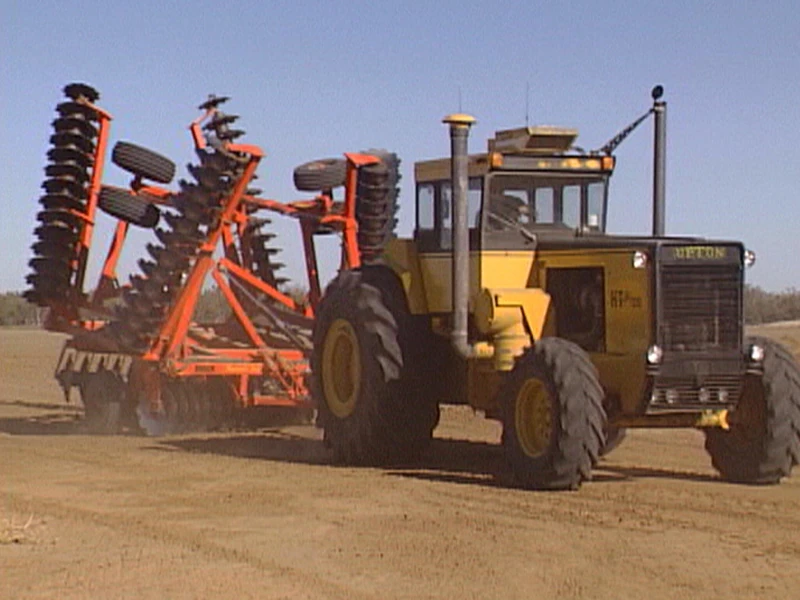

Upton 225
Upton 225 · 225 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
225 hp
Weight
9511 kg
Hover a source tag to verify
Overview
ManufacturerUptonReference
Built in Corowa, New South Wales, AustraliaReference
Two-wheel driveReference
PTO & Hydraulics
Nissan 6.2L 5-cyl dieselReference
Engine167.8 kWReference
Pressure172.4 barReference
Valves3Reference
Total flow75.7 lpmReference
Ag front11x16Reference
Ag rear23.1x34Reference
Dimensions
Weight9511 kgReference
Front tire11x16Reference
Rear tire23.1x34Reference
Length518 cmReference
Width401 cmReference
Height233 cmReference
Ground clearance40 cmReference
Engine
Nissan UD225Reference
blower (2-stroke) dieselReference
5-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke110 x 130 mmReference
Power167.8 kWReference
Compression16:1Reference
Rated RPM2200Reference
Torque736.3 NmReference
Torque RPM1500Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
