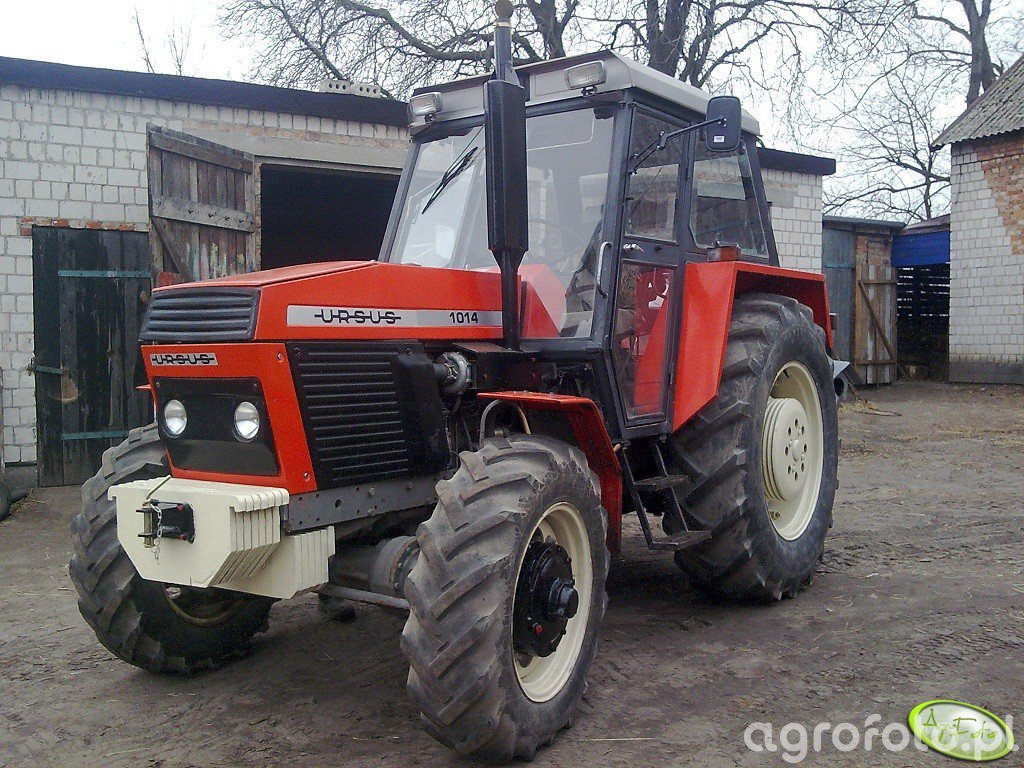

The Ursus 1014 is a tractor with an output of approximately 84 horsepower, a mid-range power rating for its class. It was manufactured from 1984 to 2009. Equipped with a 4-cylinder turbocharged diesel engine and four-wheel drive, the tractor features a powershift transmission. It has a listed operating weight of 4070 kg, with a suitable operating capacity of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
4070 kg
Catalogue coverage
Variants represented
2
Richest spec table
47 rows
Recorded power
84 hp
Recorded weight
4070 kg
Transmissions
16-speed two-speed power shift
Production years
1984-2009
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heater.Reference
Engine
4.6L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine71.6 kWReference
Z8002.1Reference
turbocharged dieselReference
4-cylinderReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power71.6 kWReference
Compression17:1Reference
Rated RPM2200Reference
Torque336.0 NmReference
Torque RPM1600Reference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch350mm dry discReference
Four gears (1-4) in two ranges (low/high), plus reverse range, with two-speed hydraulic power shift.Reference
PTO & Hydraulics
PTO (claimed)62.6 kWReference
Pump flow40.9 lpmReference
Rear TypeIIReference
Rear lift3050 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1890Reference
Engine RPM1000@1920Reference
Dimensions
Wheelbase238 cmReference
Weight4070 kgReference
Front tire11.00-16Reference
2WD Rear tire18.4-34Reference
2WD Standard tires (ag)Front: 11.00-16. Rear: 18.4-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length396 cmReference
Height269 cmReference
Electrical
Charging systemalternatorReference
Charging amps42Reference
Batteries2Reference
Battery volts6Reference
Battery AH190Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
