Tractor · 1974Unverified

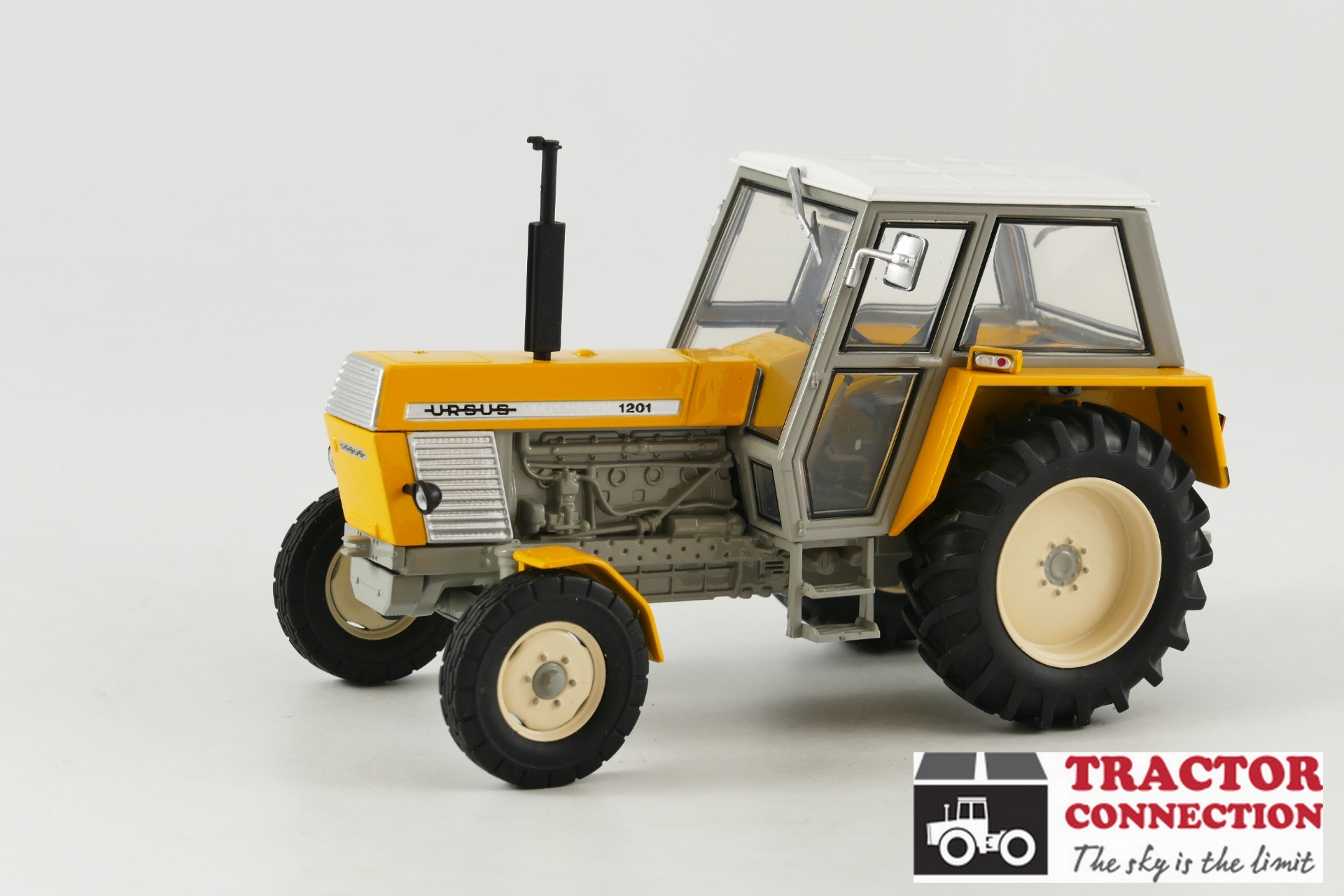

Ursus 1201
Ursus 1201 · 146 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
146 hp
Weight
4080 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Engine
6.8L 6-cyl dieselReference
6.8L 6-cylReference
Fuel tank129.8 LReference
Engine108.9 kWReference
dieselReference
6-cylinderReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power89.5 kWReference
Rated RPM2200Reference
Torque410.1 NmReference
Torque RPM1500Reference
turboReference
Power108.9 kWReference
Torque530.1 NmReference
Torque RPM1650Reference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Rear lift3050 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase270 cmReference
Weight4080 kgReference
Front tire11.5-15Reference
Rear tire18.4-34Reference
Ag front11.5-15Reference
Ag rear18.4-34Reference
Length436 cmReference
Height255 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
