Tractor · 1984Unverified

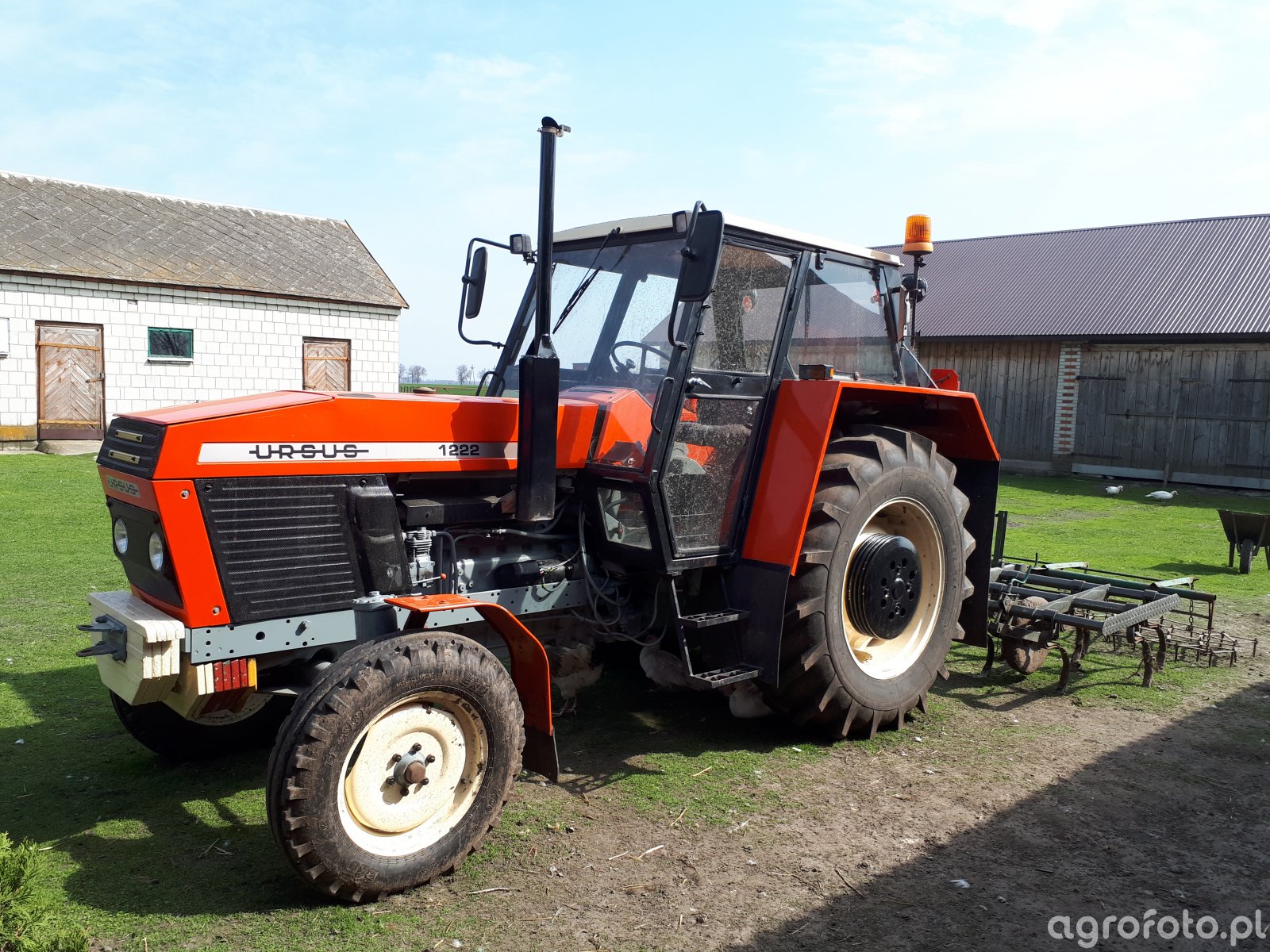

Ursus 1222
Ursus 1222 · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
4870 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heater.Reference
Variants
12222WDReference
12244WDReference
Engine
Zetor 6.8L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine108.1 kWReference
Zetor Z8701.1Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power88.7 kWReference
Air cleaneroil bathReference
Rated RPM2200Reference
Torque410.1 NmReference
Torque RPM1450Reference
ZetorReference
turbocharged dieselReference
Power108.1 kWReference
Torque718.7 NmReference
Torque RPM1650Reference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (II/I) plus reverse range (R) with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)72.3 kWReference
Pump flow40.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4125 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase269 cmReference
Weight4870 kgReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag rear18.4-34Reference
Length416 cmReference
Width197 cmReference
Height258 cmReference
Operating weight4870 kgReference
Ballasted weight5640 kgReference
Ground clearance42 cmReference
Front tread135/150/165/180 cmReference
Rear tread150/157/165/172/180/187 cmReference
Electrical
Charging systemalternatorReference
Charging amps42Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
