Tractor · 1984Unverified

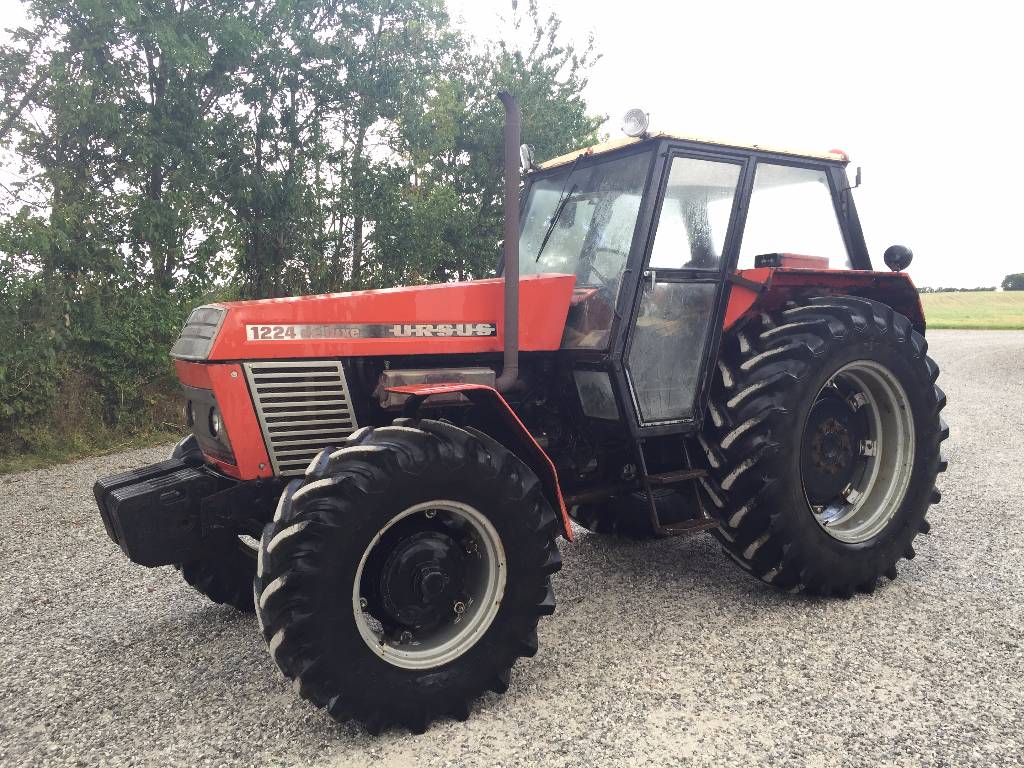

Ursus 1224
Ursus 1224 · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
4870 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heater.Reference
Variants
12222WDReference
12244WDReference
Engine
Zetor 6.8L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine88.7 kWReference
Zetor Z8701.1Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.8 LReference
Bore/Stroke110 x 120 mmReference
Power88.7 kWReference
Air cleaneroil bathReference
Rated RPM2200Reference
Torque410.1 NmReference
Torque RPM1450Reference
Starter volts24Reference
Oil capacity19.0 LReference
Coolant capacity26.0 LReference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
Oil capacity46.0 LReference
Four gears (1-4) in two ranges (II/I) plus reverse range (R) with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)72.3 kWReference
Pump flow40.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift5499 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase269 cmReference
Weight4870 kgReference
Front tire14.9-24Reference
Rear tire18.4-34Reference
Ag front14.9-24Reference
Ag rear18.4-34Reference
Length458 cmReference
Width227 cmReference
Height262 cmReference
Operating weight4870 kgReference
Ballasted weight4760 kgReference
Ground clearance42 cmReference
Front tread151/161/170/181 cmReference
Rear tread165/172/180/187 cmReference
Electrical
Charging systemalternatorReference
Charging amps42Reference
Batteries4Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
