Tractor · 1991Unverified

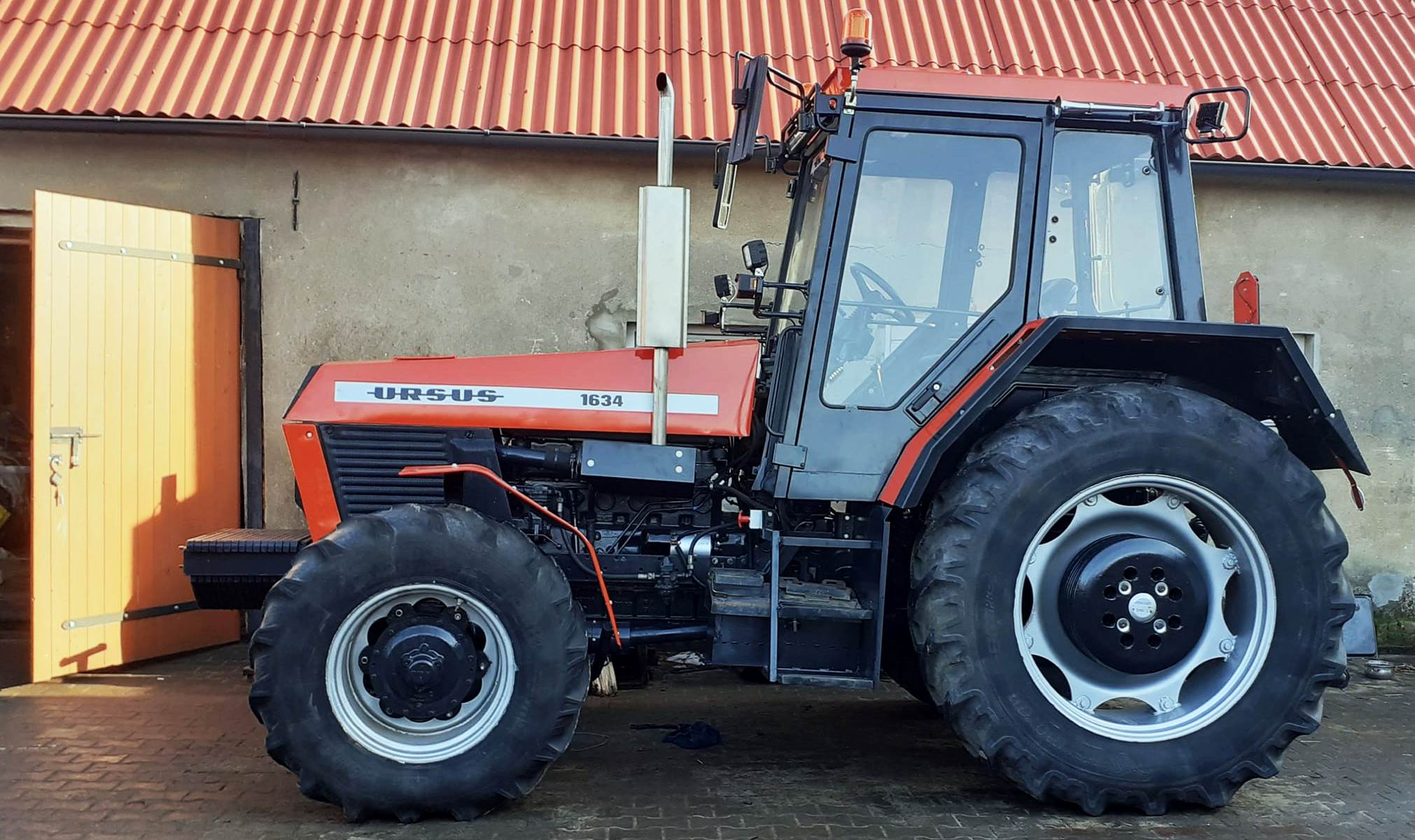

Ursus 1634

Name: Ursus 1634
Brand: Ursus

Ursus 1634 — 30 Series · 138 hp. Reference specifications; pending source verification.

The Ursus 1634 is a tractor with a power rating of approximately 138 hp, positioning it at the higher end of its class. Manufactured from 1991 to 2009, this model is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, coupled with a four-wheel drive system and a powershift transmission. With an operating weight of 5190 kg, the Ursus 1634 is suitable for working on areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

138 hp

Weight

5190 kg

Catalogue coverage

Variants represented

Richest spec table

69 rows

Recorded power

138 hp

Recorded weight

5190 kg

Transmissions

12-speed two-speed power shift

Production years

1991-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerUrsusReference

Built in Warsaw, PolandReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Dry disc brakesReference

Cab standard with heat.Reference

Engine

Zetor 6.8L 6-cyl dieselReference

Engine114.0 kWReference

Zetor Z 8602.12Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement6.8 LReference

Bore/Stroke110 x 120 mmReference

Power114.0 kWReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Compression17:1Reference

Rated RPM2200Reference

Torque566.7 NmReference

Torque RPM1650Reference

StarterelectricReference

Starter volts24Reference

Starter power5.6 kWReference

Oil capacity19.0 LReference

Coolant capacity29.0 LReference

Transmission

12-speed two-speed power shiftReference

Typetwo-speed power shiftReference

Gears12 forward and 6 reverseReference

Clutch380mm hydraulic dry discReference

Oil capacity46.0 LReference

Three gears (1-3) in two ranges (I/II) plus reverse range (R) with two-speed power shift.Reference

PTO & Hydraulics

PTO (claimed)103.0 kWReference

Hydraulic system46.0 LReference

Capacity46.0 LReference

Pump flow40.9 lpmReference

Rear TypeIIReference

Rear TypeIIIReference

Controlposition and draft controlReference

Rear lift5499 kgReference

Rear PTOindependentReference

ClutchhydraulicReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.75)Reference

Engine RPM540@1890Reference

Engine RPM1000@1920Reference

Front PTO1000Reference

Capacities

Fuel169.9 LReference

Dimensions

Wheelbase270 cmReference

Weight5190 kgReference

Front tire14.9-24Reference

Rear tire18.4-38Reference

Standard tires (ag)Front: 14.9-24. Rear: 18.4-38Reference

Length449 cmReference

Width226 cmReference

Height (cab)298 cmReference

Height (exhaust)301 cmReference

Ballasted weight6300 kgReference

Ground clearance48 cmReference

Front tread170/181 cmReference

Rear tread165/172/180/187 cmReference

Electrical

Charging systemalternatorReference

Charging amps55Reference

Charging volts12Reference

Batteries2Reference

Battery volts12Reference

Battery AH135Reference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
