Tractor · 2000Unverified

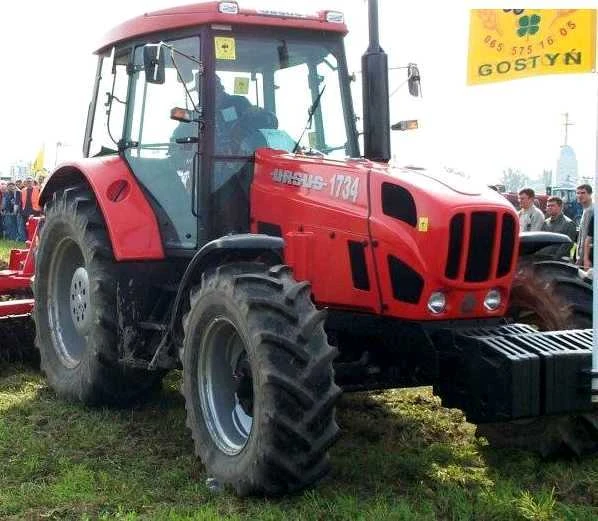

Ursus 1734
Ursus 1734 — 30 Series · 146 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
146 hp
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
Zetor 7.3L 6-cyl dieselReference
Engine125.0 kWReference
Zetor Z 8604.000Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.3 LReference
Bore/Stroke110 x 128 mmReference
Power125.0 kWReference
Fuel systemdirect injectionReference
Compression16.8:1Reference
Rated RPM220Reference
Torque648.0 NmReference
Torque RPM1480Reference
StarterelectricReference
Starter volts24Reference
Starter power6.7 kWReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch380mm hydraulic dry discReference
Four gears (1-4) in two ranges (I/II) plus reverse range (R) with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)109.0 kWReference
Pump flow54.1 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Rear lift7199 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@1890Reference
Engine RPM1000@1920Reference
Front PTO1000Reference
Dimensions
Wheelbase270 cmReference
Front tire14.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 14.9R28. Rear: 20.8R38Reference
Length450 cmReference
Width243 cmReference
Height (exhaust)304 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Battery AH172Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
