Tractor · 2001Unverified

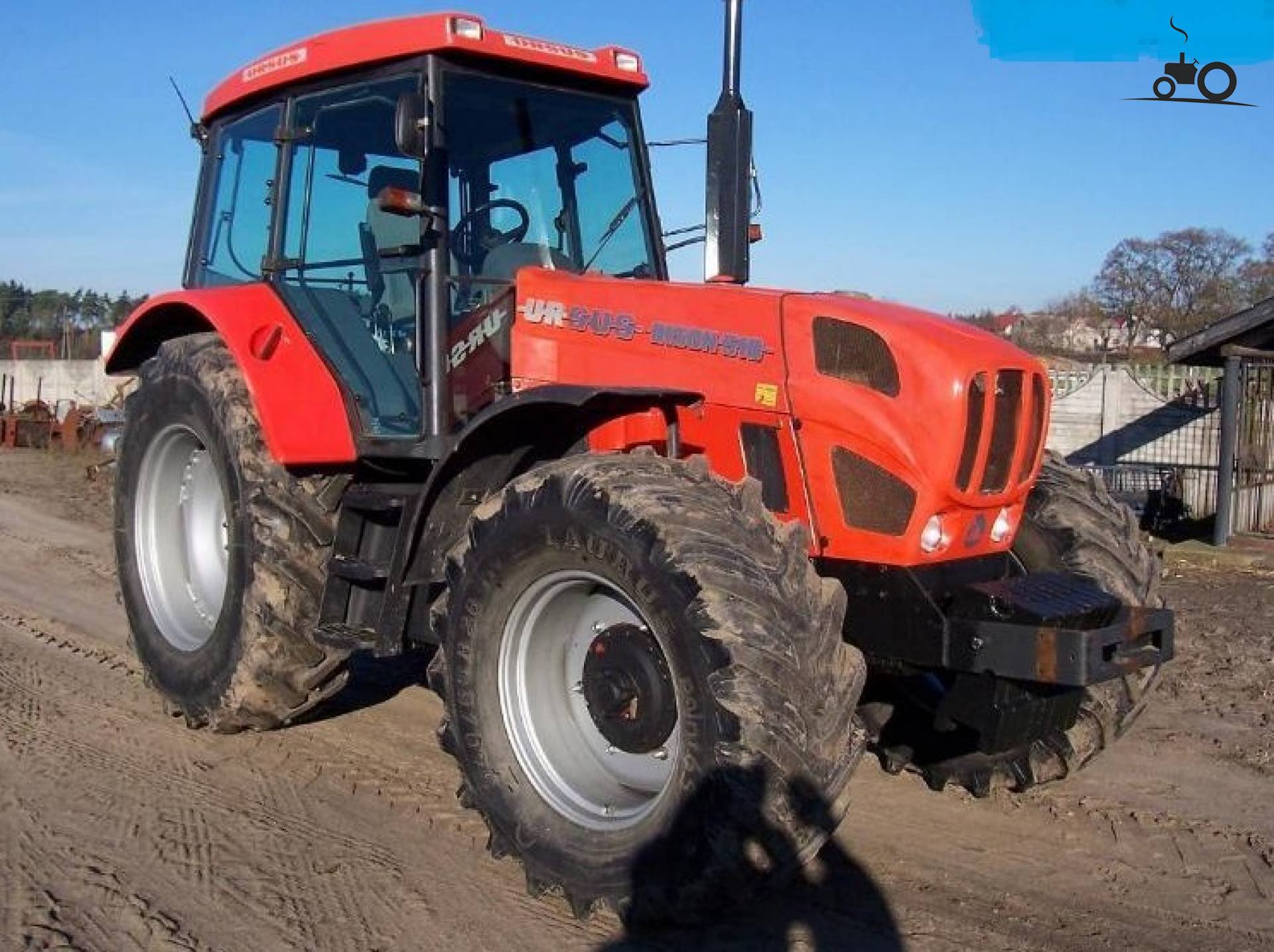

Ursus 1934
Ursus 1934 — 30 Series · 166 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
166 hp
Weight
6180 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Differential lockelectro-hydraulic front and rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with heater. Air-conditioning optional.Reference
Engine
Zetor 7.3L 6-cyl dieselReference
Engine140.0 kWReference
Zetor Z 8604.020Reference
turbocharged intercooled dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.3 LReference
Bore/Stroke110 x 128 mmReference
Power140.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Compression15.6:1Reference
Rated RPM220Reference
Torque722.1 NmReference
Torque RPM1530Reference
StarterelectricReference
Starter volts24Reference
Starter power6.7 kWReference
Oil capacity19.0 LReference
Coolant capacity29.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch380mm hydraulic dry discReference
Oil capacity55.0 LReference
Four gears (1-4) in two ranges (I/II) plus reverse range (R) with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)124.0 kWReference
Hydraulic system54.9 LReference
Capacity54.9 LReference
Pump flow54.9 lpmReference
Rear TypeIIIReference
Controlposition and draft controlReference
Rear lift7199 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Rear PTO Type1000 (1.75)Reference
Engine RPM540@1890Reference
Engine RPM1000@1920Reference
Front PTO1000Reference
Capacities
Fuel355.0 LReference
Dimensions
Wheelbase270 cmReference
Weight6180 kgReference
Front tire16.9R28Reference
Rear tire20.8R38Reference
Standard tires (ag)Front: 16.9R28. Rear: 20.8R38Reference
Length450 cmReference
Width243 cmReference
Height (cab)302 cmReference
Height (exhaust)304 cmReference
Ballasted weight8150 kgReference
Ground clearance50 cmReference
Front tread168/179/188 cmReference
Rear tread180 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Battery AH172Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
