Tractor · Unverified

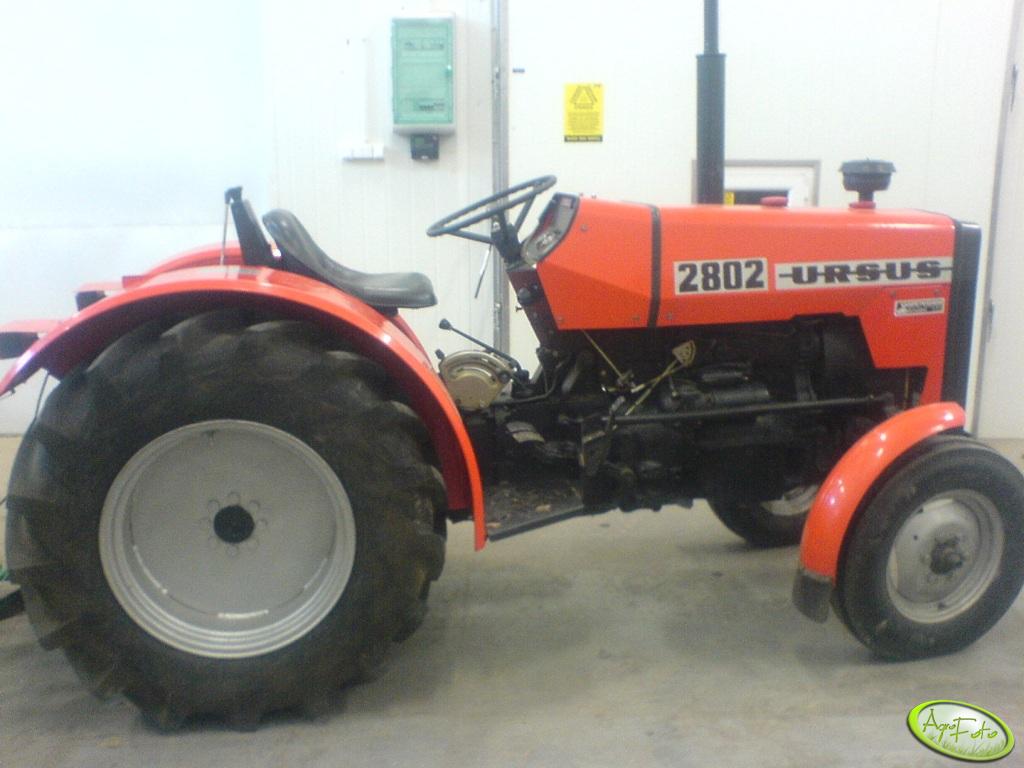

Ursus 2802
Ursus 2802 — Orchard/Vineyard tractor · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1850 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Orchard/Vineyard tractorReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Two-post mid-mount folding ROPS.Reference
Engine
Ursus 2.5L 3-cyl dieselReference
Engine28.0 kWReference
Ursus 3250Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power28.0 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Pre-heatingglow plugsReference
Compression16.5:1Reference
Rated RPM2000Reference
Torque144.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity6.8 LReference
Coolant capacity10.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
Oil capacity42.0 LReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)25.0 kWReference
Hydraulic system42.0 LReference
Capacity42.0 LReference
Pressure160.0 barReference
Pump flow23.1 lpmReference
Rear TypeIIReference
ControlPosition and draft controlReference
Rear lift1329 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1893Reference
Capacities
Fuel57.9 LReference
Dimensions
Wheelbase208 cmReference
Weight1850 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 12.4-28Reference
Length341 cmReference
Width130 cmReference
Height (steering wheel)150 cmReference
Height (ROPS)250 cmReference
Ballasted weight1950 kgReference
Clearance (rear axle)33 cmReference
Clearance (drawbar)24 cmReference
Front tread104 cmReference
Rear tread98 cmReference
Electrical
Charging systemalternatorReference
Charging amps44Reference
Charging volts12Reference
Battery volts12Reference
Battery AH90Reference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
