Tractor · 1984Unverified

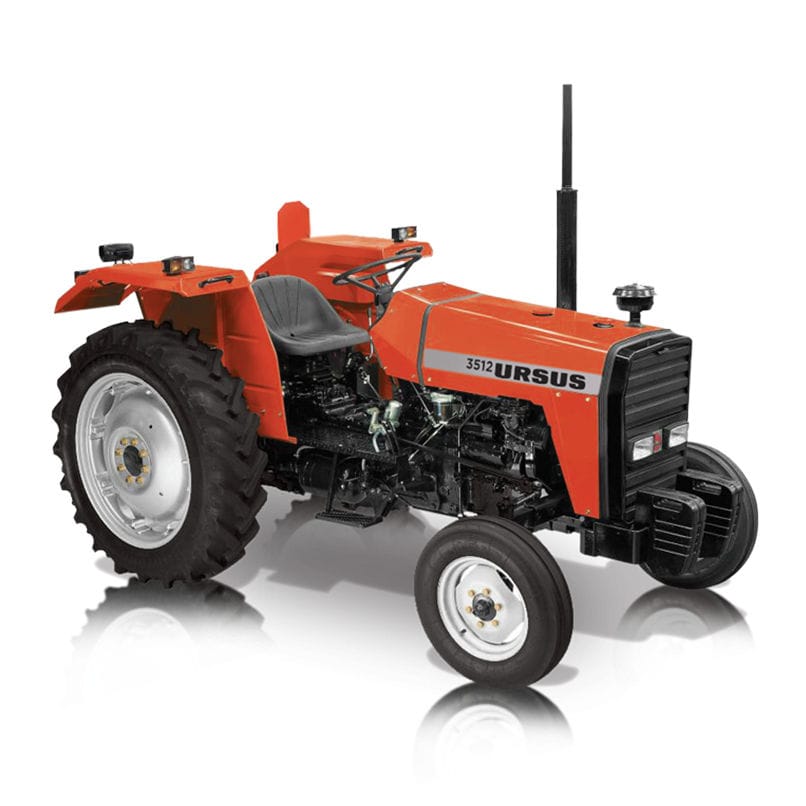

Ursus 3512
Ursus 3512 · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
2285 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
35122WDReference
Engine
Ursus-Perkins 2.5L 3-cyl dieselReference
Fuel tank57.9 LReference
Engine35.0 kWReference
Ursus-Perkins 3250Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.0 kWReference
Air cleaneroil bathReference
Rated RPM2250Reference
Torque165.0 NmReference
Torque RPM1300Reference
Starter volts12Reference
Transmission
8-speedReference
12-speed creeperReference
Gears8 forward and 2 reverseReference
TypecreeperReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Pump flow17.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1329 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1893Reference
Dimensions
Wheelbase208 cmReference
Weight2285 kgReference
Front tire6.00-16Reference
Rear tire14.9R28Reference
Ag front6.00-16Reference
Ag rear14.9R28Reference
Length341 cmReference
Width187 cmReference
Height (cab)248 cmReference
Height (exhaust)237 cmReference
ROPS Weight2285 kgReference
Front tread135/150/180 cmReference
Rear tread150 to 220 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Speeds
With 14.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
