Tractor · 1984Unverified

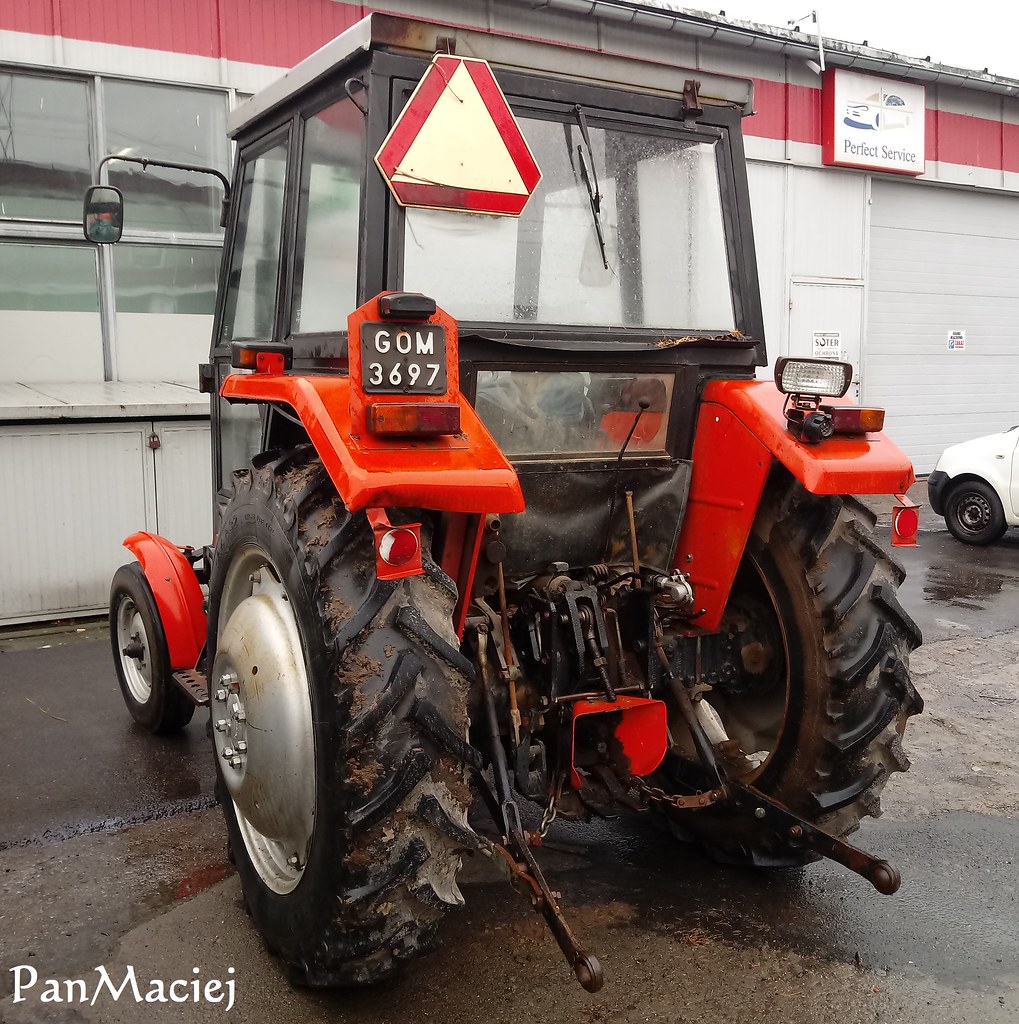

Ursus 3514
Ursus 3514 · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Weight
3030 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard.Reference
Variants
35122WDReference
Engine
Ursus-Perkins 2.5L 3-cyl dieselReference
Fuel tank57.9 LReference
Engine34.6 kWReference
Ursus-Perkins 3250Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power34.6 kWReference
Air cleaneroil bathReference
Rated RPM2250Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1893Reference
Dimensions
Wheelbase223 cmReference
Weight3030 kgReference
Front tire8.3-24Reference
Rear tire12.4-32Reference
Ag front8.3-24Reference
Ag rear12.4-32Reference
Length350 cmReference
Width184 cmReference
Height260 cmReference
Operating weight3030 kgReference
Ballasted weight3129 kgReference
Ground clearance27 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 12.4-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
