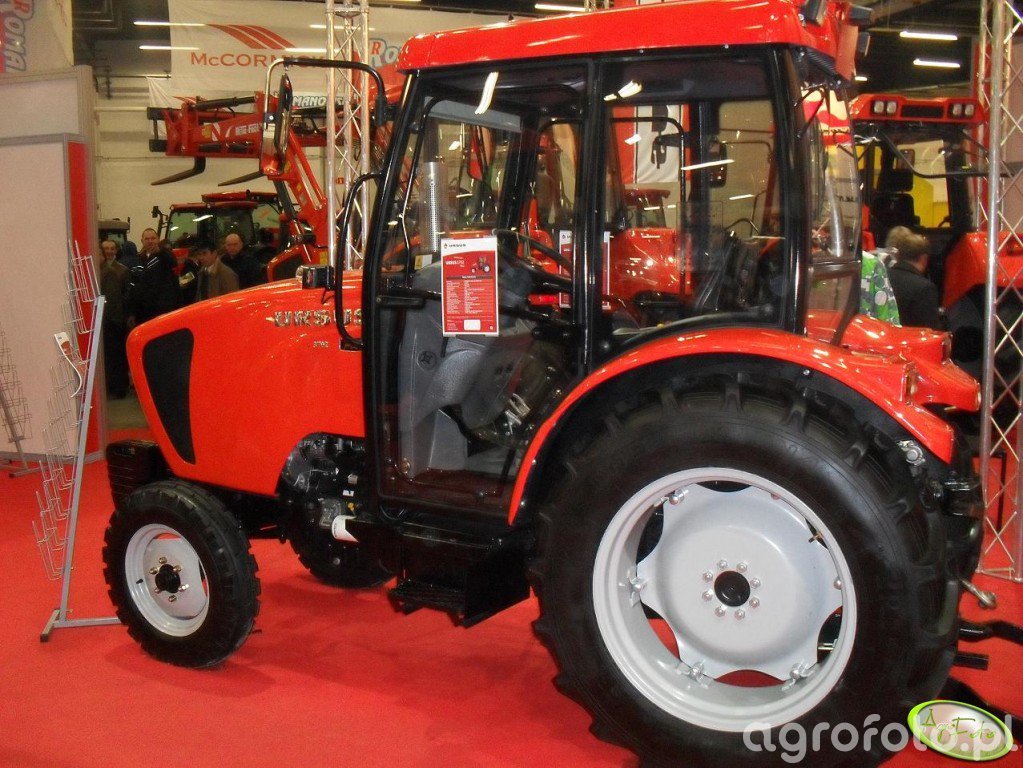

The Ursus 3702 Piko is a tractor model rated at approximately 50 hp, positioned at the lighter end of its class. It was manufactured from 2009 to 2011 and features a 3-cylinder diesel liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. The tractor has an operating weight of 2320 kg and is capable of handling operations up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2320 kg
Catalogue coverage
Variants represented
2
Richest spec table
37 rows
Recorded power
50 hp
Recorded weight
2320 kg
Transmissions
8-speed
Production years
2009-2011
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Power steeringReference
Cab standard with available air-conditioning.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank50.0 LReference
Engine36.9 kWReference
Perkins 1103D-33Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
EmissionsStage IIIAReference
Power36.9 kWReference
Torque196.1 NmReference
Torque RPM1400Reference
Starter typeelectricReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Pump flow26.1 lpmReference
Pump flow45.0 lpmReference
Rear TypeIIReference
Rear lift1329 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Weight2320 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 12.4-28Reference
Length329 cmReference
Width133 cmReference
Height228 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
