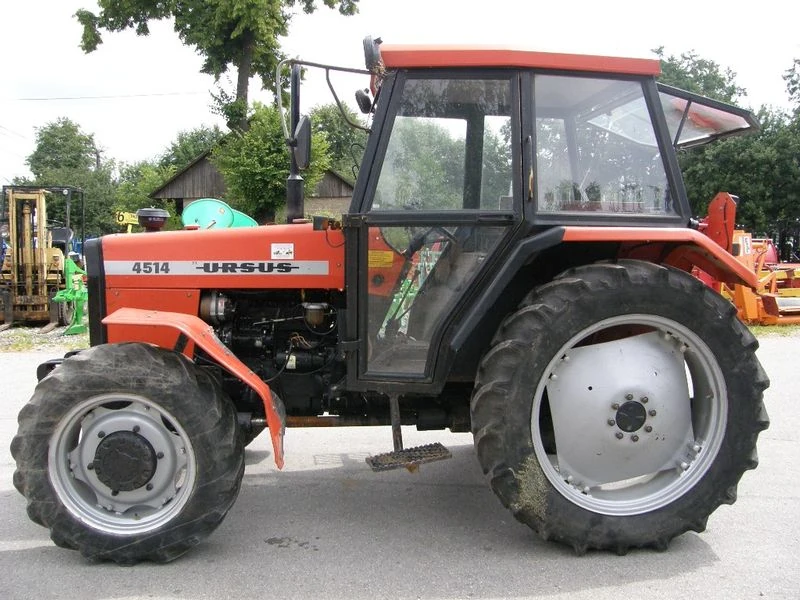

The Ursus 4514 DL is a tractor with a rated output of 72 hp, falling within the mid-range of its class. This model was produced between 1992 and 1998. It features a 4-cylinder diesel engine combined with four-wheel drive and an 8-speed gearbox. The operating weight is specified at 3405 kg, with a capacity for operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
72 hp
Weight
3405 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
72 hp
Recorded weight
3405 kg
Transmissions
8-speed
Production years
1992-1998
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Drive4x4 4WDReference
Engine
3.9L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine53.7 kWReference
dieselReference
4-cylinderReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power53.7 kWReference
Rated RPM2200Reference
Torque261.0 NmReference
Torque RPM1400Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Pump flow26.1 lpmReference
Rear lift2200 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase231 cmReference
Weight3405 kgReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Ag front12.4-24Reference
Ag rear16.9-34Reference
Length378 cmReference
Height259 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
