Tractor · 1993Unverified

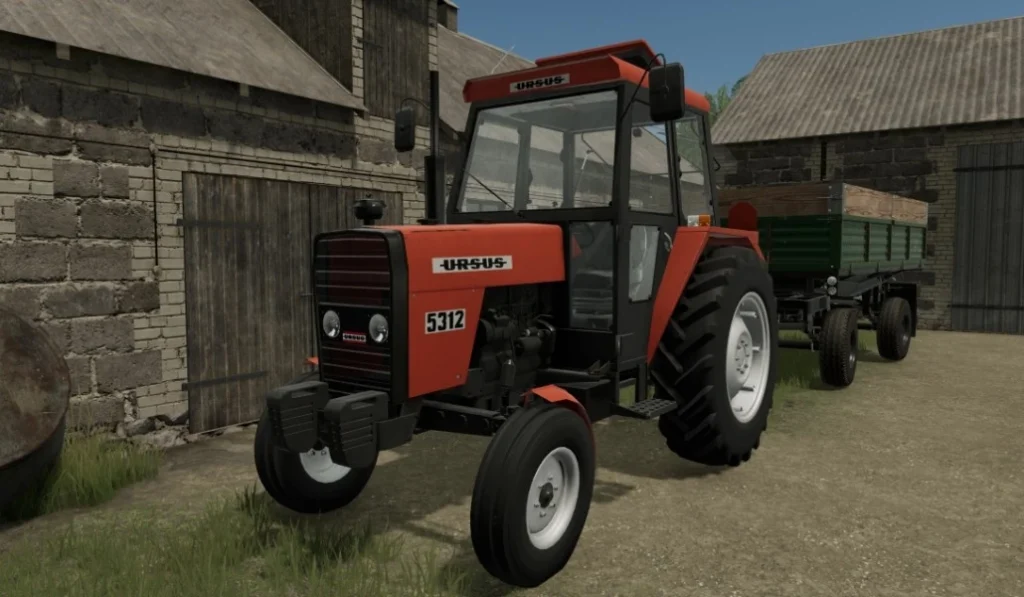

Ursus 5312
Ursus 5312 — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5842 to 7011 pounds
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Utility tractorReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with available heater.Reference
Variants
53122WDReference
53144WDReference
Engine
Ursus 3.9L 4-cyl dieselReference
Engine52.2 kWReference
Ursus 4390Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Pre-heatingglow plugsReference
Compression16:1Reference
Rated RPM2200Reference
Torque261.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity7.0 LReference
Coolant capacity15.0 LReference
Coolant capacity16.6 LReference
Transmission
8-speedReference
16-speed two-speed power shiftReference
12-speedReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
Oil capacity42.0 LReference
Four gears, plus reverse, in two ranges.Reference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears, plus reverse, in two ranges with two-speed power shift.Reference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)45.0 kWReference
Hydraulic system42.0 LReference
Capacity42.0 LReference
Pressure160.0 barReference
Pump flow26.1 lpmReference
Steering cap.1.2 LReference
Rear TypeIIReference
ControlPosition and draft controlReference
Rear lift2199 kgReference
Rear lift2600 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1993Reference
Engine RPM1000@2000Reference
Capacities
Fuel79.9 LReference
Steering1.2 LReference
Dimensions
Wheelbase221 cmReference
Weight5842 to 7011 poundsReference
Front tire7.50-16Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 7.50-16. Rear: 16.9-34Reference
Length376 cmReference
Width200 cmReference
Height (cab)254 cmReference
Height (exhaust)262 cmReference
Clearance (rear axle)45 cmReference
Clearance (drawbar)34 cmReference
Front tread139/150/160/169/180 cmReference
Rear tread150 to 221 cmReference
ROPS2649 kgReference
Cab3180 kgReference
Ballasted3685 kgReference
Electrical
Charging systemalternatorReference
ROPS Charging amps44Reference
Cab Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH120Reference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
