Tractor · 1993Unverified

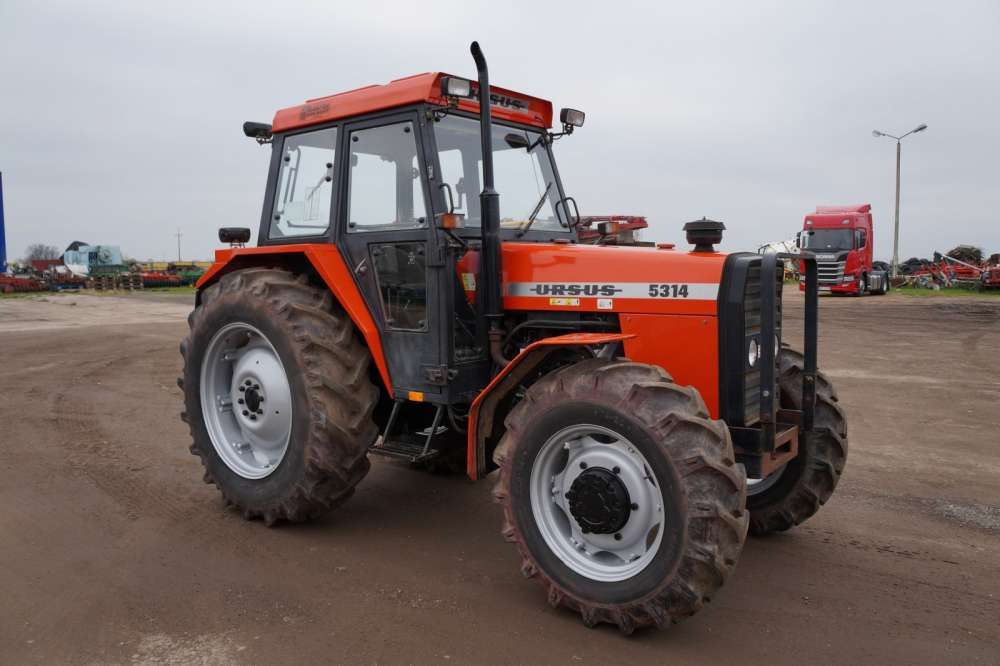

Ursus 5314
Ursus 5314 — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
3500 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Utility tractorReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with available heater.Reference
Variants
53122WDReference
53144WDReference
Engine
Ursus 3.9L 4-cyl dieselReference
Engine52.2 kWReference
Ursus 4390Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Pre-heatingglow plugsReference
Compression16:1Reference
Rated RPM2200Reference
Torque261.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity7.0 LReference
Coolant capacity15.0 LReference
Coolant capacity16.6 LReference
Transmission
8-speedReference
16-speedReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
Oil capacity44.0 LReference
Four gears, plus reverse, in two ranges.Reference
Gears16 forward and 8 reverseReference
Four gears, plus reverse, in two ranges with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)45.0 kWReference
Hydraulic system43.9 LReference
Capacity43.9 LReference
Pressure160.0 barReference
Pump flow26.1 lpmReference
Steering cap.1.2 LReference
Rear TypeIIReference
ControlPosition and draft controlReference
Rear lift2199 kgReference
Rear lift2600 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1993Reference
Engine RPM1000@2000Reference
Capacities
Fuel79.9 LReference
Steering1.2 LReference
Dimensions
Wheelbase230 cmReference
Weight3500 kgReference
Front tire12.4-24Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 12.4-24. Rear: 16.9R34Reference
Length375 cmReference
Width200 cmReference
Height (cab)254 cmReference
Height (exhaust)266 cmReference
Clearance (drawbar)28 cmReference
Front tread147/150/162/163/165/166 cmReference
Rear tread150 to 221 cmReference
Electrical
Charging systemalternatorReference
Charging amps44Reference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH120Reference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
