Tractor · 2002Unverified

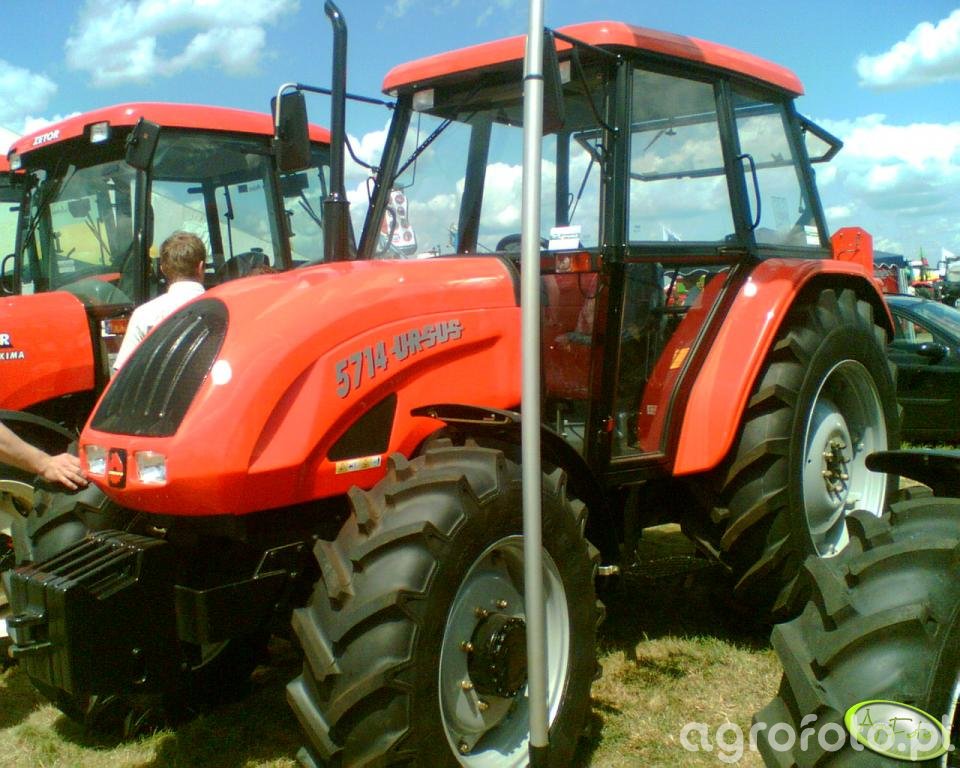

Ursus 5714

Name: Ursus 5714
Brand: Ursus

Ursus 5714 — Utility tractor · 67 hp. Reference specifications; pending source verification.

The Ursus 5714 is a tractor with a rated output of 67 hp, placing it in the middle of its power class. Produced from 2002 to 2009, it features a 4-cylinder diesel liquid-cooled engine, which drives a four-wheel drive system via an 8-speed gearbox. The listed weight of the tractor ranges from 7077 to 7837 pounds. It is designed to handle tasks of approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

67 hp

Weight

7077 to 7837 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

67 hp

Transmissions

8-speed

Production years

2002-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerUrsusReference

Utility tractorReference

Built in Warsaw, PolandReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post ROPS. Cab optional with available heater.Reference

Variants

57122WDReference

57144WDReference

Engine

Ursus 4.1L 4-cyl dieselReference

Engine59.5 kWReference

Ursus 4410Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.1 LReference

Bore/Stroke101 x 127 mmReference

Power59.5 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Compression16:1Reference

Rated RPM2200Reference

Torque285.0 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity8.3 LReference

Coolant capacity15.2 LReference

Transmission

8-speedReference

12-speedReference

Gears8 forward and 2 reverseReference

Clutch305mm dry discReference

Oil capacity44.0 LReference

Four gears, plus reverse, in two ranges.Reference

Gears12 forward and 4 reverseReference

PTO & Hydraulics

PTO (claimed)50.0 kWReference

Hydraulic system43.9 LReference

Capacity43.9 LReference

Pressure160.0 barReference

Pump flow26.1 lpmReference

Steering cap.2.3 LReference

Rear TypeIIReference

ControlPosition and draft controlReference

Rear lift2800 kgReference

Rear lift3200 kgReference

Rear PTOliveReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1992Reference

Engine RPM1000@2000Reference

Capacities

Fuel79.9 LReference

Steering2.3 LReference

Dimensions

Wheelbase232 cmReference

Weight7077 to 7837 poundsReference

Front tire12.4R24Reference

Rear tire16.9R34Reference

Standard tires (ag)Front: 12.4R24. Rear: 16.9R34Reference

Length382 cmReference

Width200 cmReference

Height (cab)255 cmReference

Height (exhaust)277 cmReference

Clearance (rear axle)48 cmReference

Clearance (drawbar)28 cmReference

Front tread147 to 181 cmReference

Rear tread150 to 221 cmReference

ROPS3210 kgReference

Cab3554 kgReference

Ballasted4050 kgReference

Electrical

Charging systemalternatorReference

Charging amps44Reference

Charging amps55Reference

Charging volts12Reference

Battery volts12Reference

Battery AH120Reference

Speeds

With 16.9R34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
