Tractor · 1997Unverified

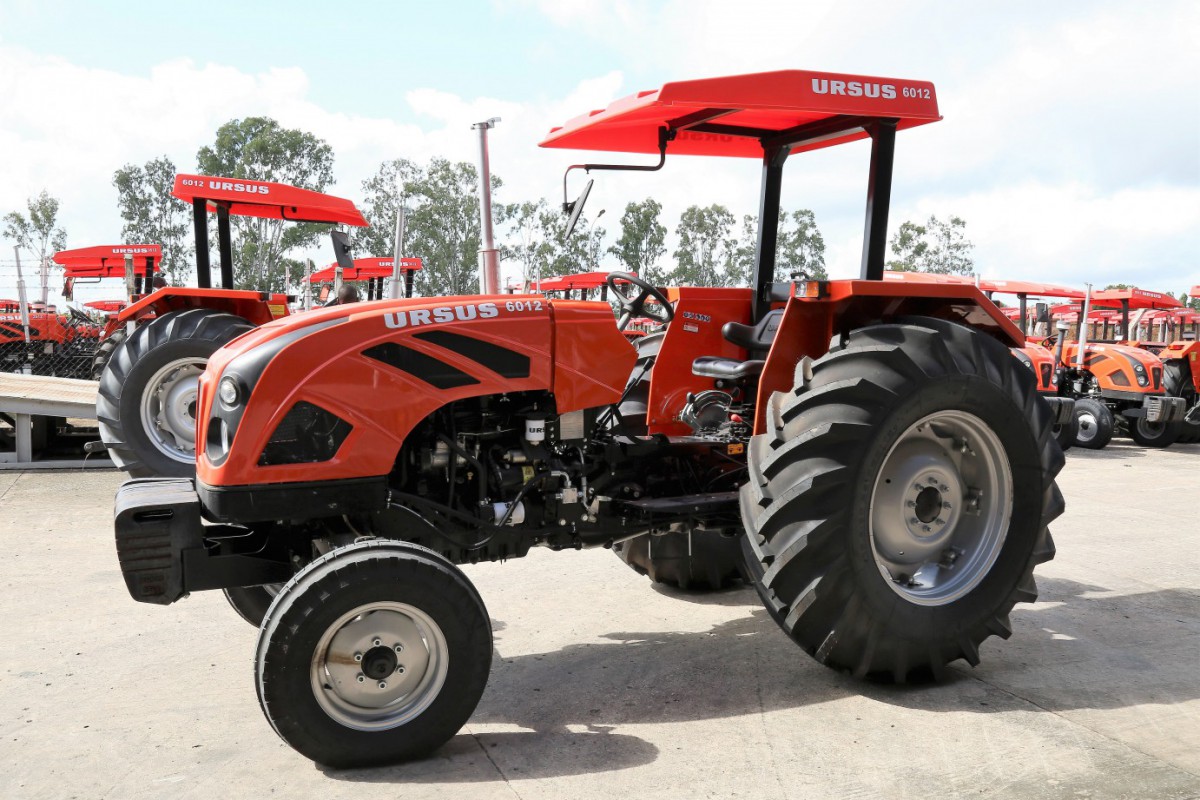

Ursus 6012
Ursus 6012 — Utility tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
3349 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Utility tractorReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with available heater.Reference
Variants
60122WDReference
60144WDReference
Engine
Ursus 3.9L 4-cyl dieselReference
Engine60.0 kWReference
Ursus T4390Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power60.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression16:1Reference
Rated RPM2200Reference
Torque308.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity7.0 LReference
Coolant capacity18.0 LReference
Coolant capacity19.0 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Oil capacity46.0 LReference
Four gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
PTO (claimed)55.5 kWReference
Hydraulic system46.2 LReference
Capacity46.2 LReference
Pump flow26.1 lpmReference
Steering cap.1.6 LReference
Rear TypeIIReference
ControlPosition and draft controlReference
Rear lift3499 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1993Reference
Engine RPM1000@2000Reference
Capacities
Fuel140.0 LReference
Steering1.6 LReference
Dimensions
Wheelbase225 cmReference
Weight3349 kgReference
Front tire7.50-20Reference
Rear tire16.9R34Reference
Standard tires (ag)Front: 7.50-20. Rear: 16.9R34Reference
Length387 cmReference
Width200 cmReference
Height (cab)254 cmReference
Height (exhaust)267 cmReference
Ballasted weight4050 kgReference
Front tread139/150/160/169/180 cmReference
Rear tread150 to 221 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH120Reference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
