Tractor · 1997Unverified

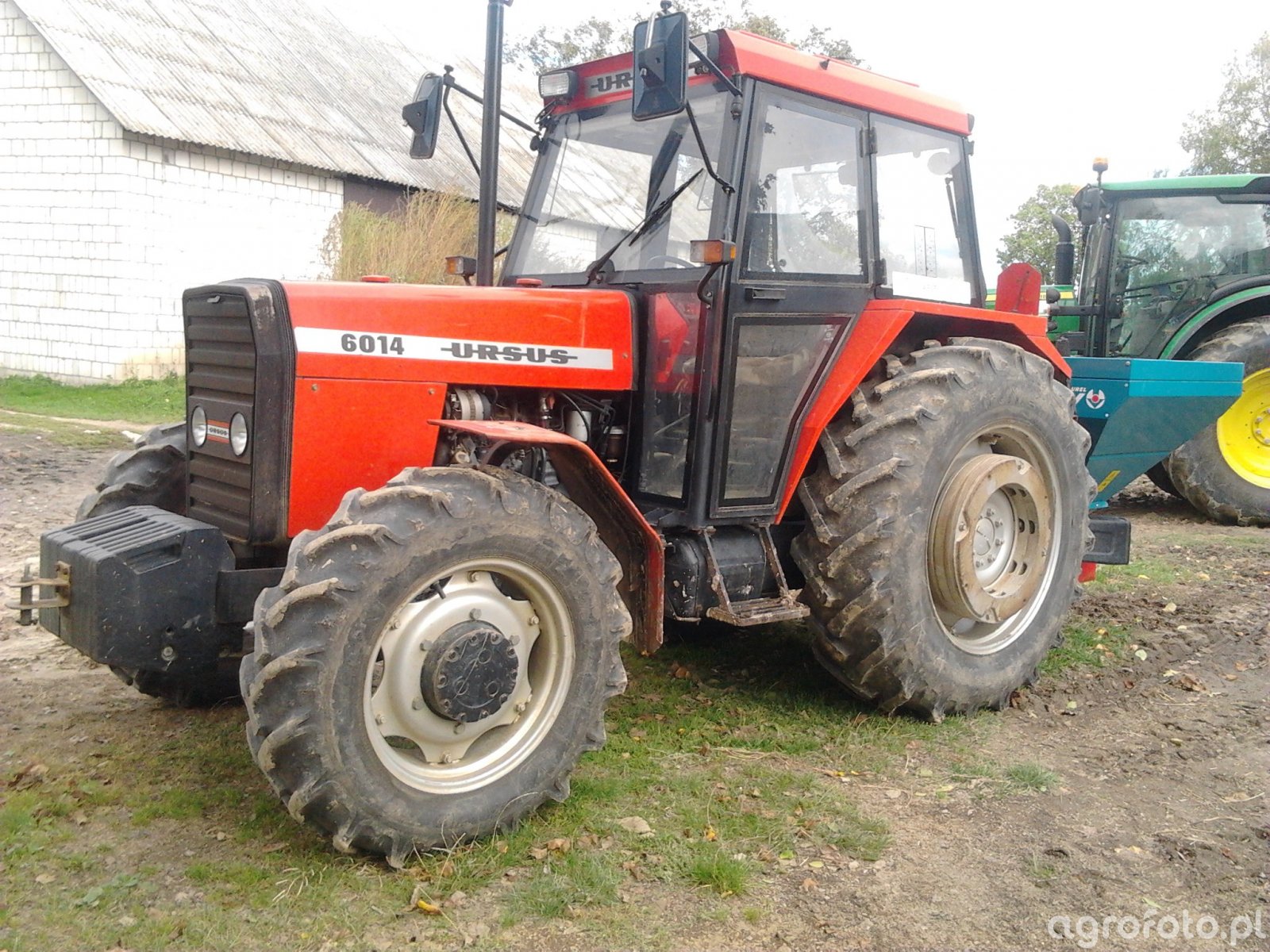

Ursus 6014
Ursus 6014 — Utility tractor · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
3620 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Utility tractorReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post ROPS. Cab optional with available heater.Reference
Variants
60122WDReference
60144WDReference
Engine
Ursus 3.9L 4-cyl dieselReference
Engine60.0 kWReference
Ursus T4390Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 127 mmReference
Power60.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression16:1Reference
Rated RPM2200Reference
Torque308.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity7.0 LReference
Coolant capacity18.0 LReference
Coolant capacity19.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity46.0 LReference
Three gears, plus reverse, in two ranges with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)55.5 kWReference
Hydraulic system46.2 LReference
Capacity46.2 LReference
Pump flow26.1 lpmReference
Steering cap.1.6 LReference
Rear TypeIIReference
ControlPosition and draft controlReference
Rear lift3499 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1993Reference
Engine RPM1000@2000Reference
Capacities
Fuel140.0 LReference
Steering1.6 LReference
Dimensions
Wheelbase233 cmReference
Weight3620 kgReference
Front tire12.4-24Reference
Rear tire16.9-34Reference
Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
Length387 cmReference
Width200 cmReference
Height (cab)254 cmReference
Height (exhaust)266 cmReference
Ballasted weight3850 kgReference
Front tread147/150/162/163/165/166/178/181 cmReference
Rear tread150 to 221 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH120Reference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
