Tractor · 1991Unverified

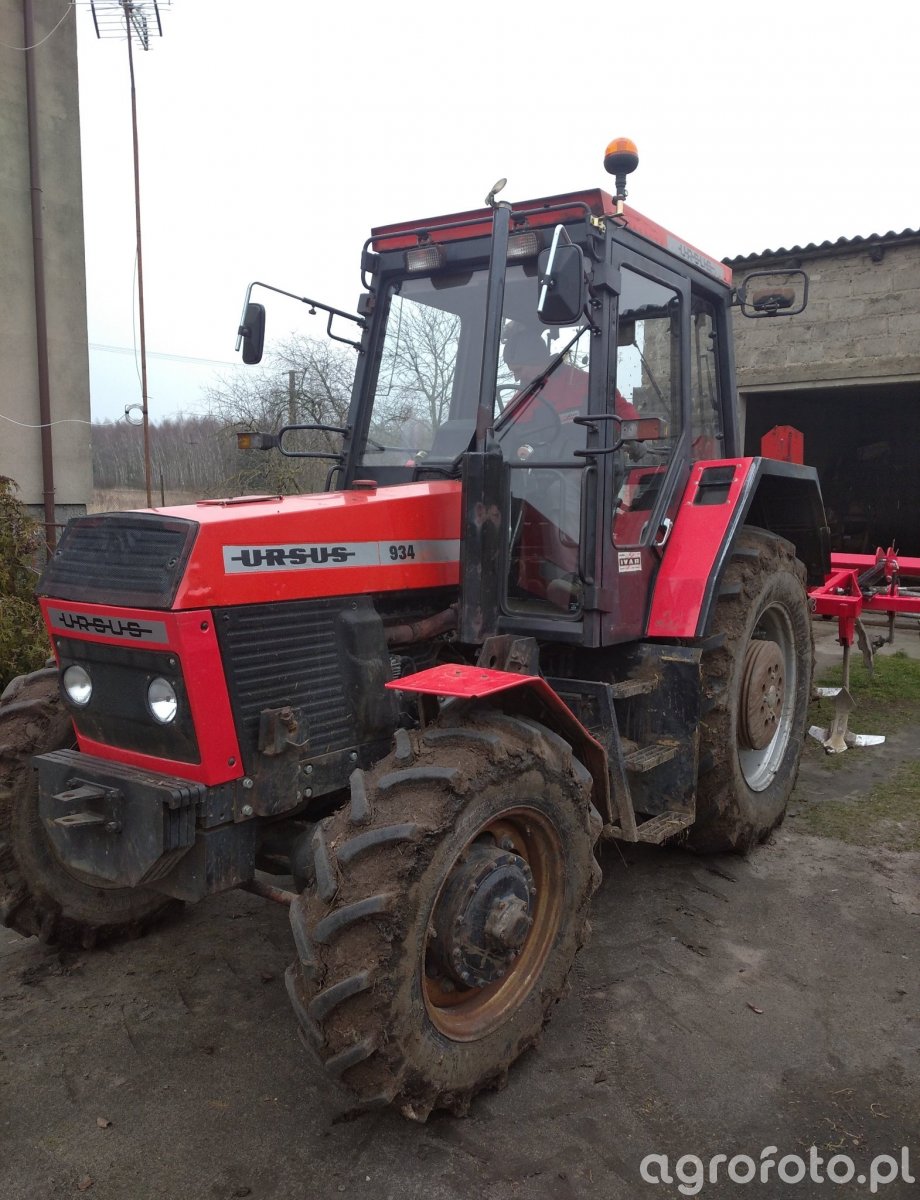

Ursus 934
Ursus 934 — 30 Series · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
4760 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Built in Warsaw, PolandReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry disc brakesReference
Cab standard with heat.Reference
Variants
9322WDReference
9344WDReference
Engine
Zetor 4.6L 4-cyl dieselReference
Engine58.8 kWReference
Zetor Z 8401.12Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power58.8 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2200Reference
Torque277.6 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts24Reference
Starter power4.8 kWReference
Oil capacity10.0 LReference
Coolant capacity23.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch350mm hydraulic dry discReference
Oil capacity46.0 LReference
Four gears (1-4) in two ranges (I/II) plus reverse range (R) with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)50.8 kWReference
Hydraulic system46.0 LReference
Capacity46.0 LReference
Pump flow40.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4125 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1890Reference
Engine RPM1000@1920Reference
Front PTO1000Reference
Capacities
Fuel90.1 LReference
Fuel129.8 LReference
Dimensions
Wheelbase239 cmReference
Weight4760 kgReference
Front tire12.4-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length414 cmReference
Width208 cmReference
Height (cab)293 cmReference
Height (exhaust)296 cmReference
Ballasted weight5360 kgReference
Ground clearance38 cmReference
Front tread151/161/170/181 cmReference
Rear tread150/157/165/172/180/187 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Batteries2Reference
Battery volts12Reference
Battery AH135Reference
Speeds
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
