Tractor · 1976Unverified

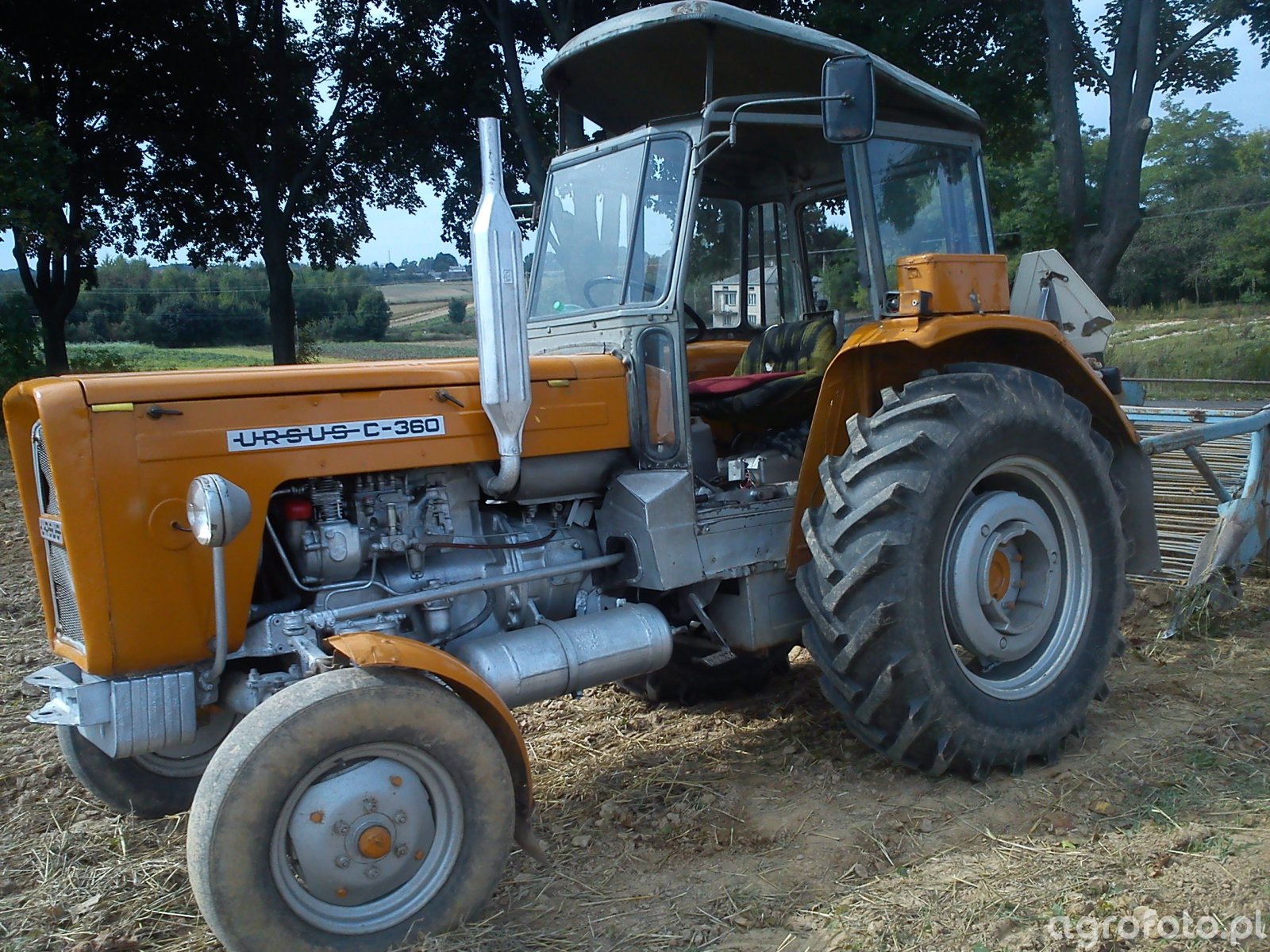

Ursus C-360
Ursus C-360 — Utility tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
2170 kg
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Utility tractorReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Final drivesbull gearReference
Differential lockmechanical rearReference
Manual steeringReference
Hydraulic drum brakesReference
Open operator station. Cab optional.Reference
Variants
C-360Ursus engineReference
C-360-3PPerkins engineReference
Engine
Ursus 3.1L 4-cyl S-4003Reference
Fuel tank70.0 LReference
Engine38.8 kWReference
UrsusReference
S-4003Reference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power38.8 kWReference
Rated RPM2200Reference
Torque189.8 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Oil capacity10.0 LReference
Coolant capacity11.0 LReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
Clutchdry discReference
Oil capacity25.0 LReference
Five gears (1-5) plus reverse (R) in two ranges.Reference
PTO & Hydraulics
Pump flow20.1 lpmReference
Rear TypeIIReference
Rear lift1199 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase212 cmReference
Weight2170 kgReference
Front tire6.00-16Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 14.9-28Reference
Length357 cmReference
Width180 cmReference
Shipping weight2170 kgReference
Ballasted weight3000 kgReference
Clearance (drawbar)35 cmReference
Front tread135 to 165 cmReference
Rear tread135/142/150/157/165/172/180 cmReference
Steering wheel162 cmReference
Ursus C-360 Height
Cab223 cmReference
Exhaust204 cmReference
Speeds
With 14.9/13-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
