Search/Tractor/Ursus/C-360-3P
Tractor · 1981Unverified

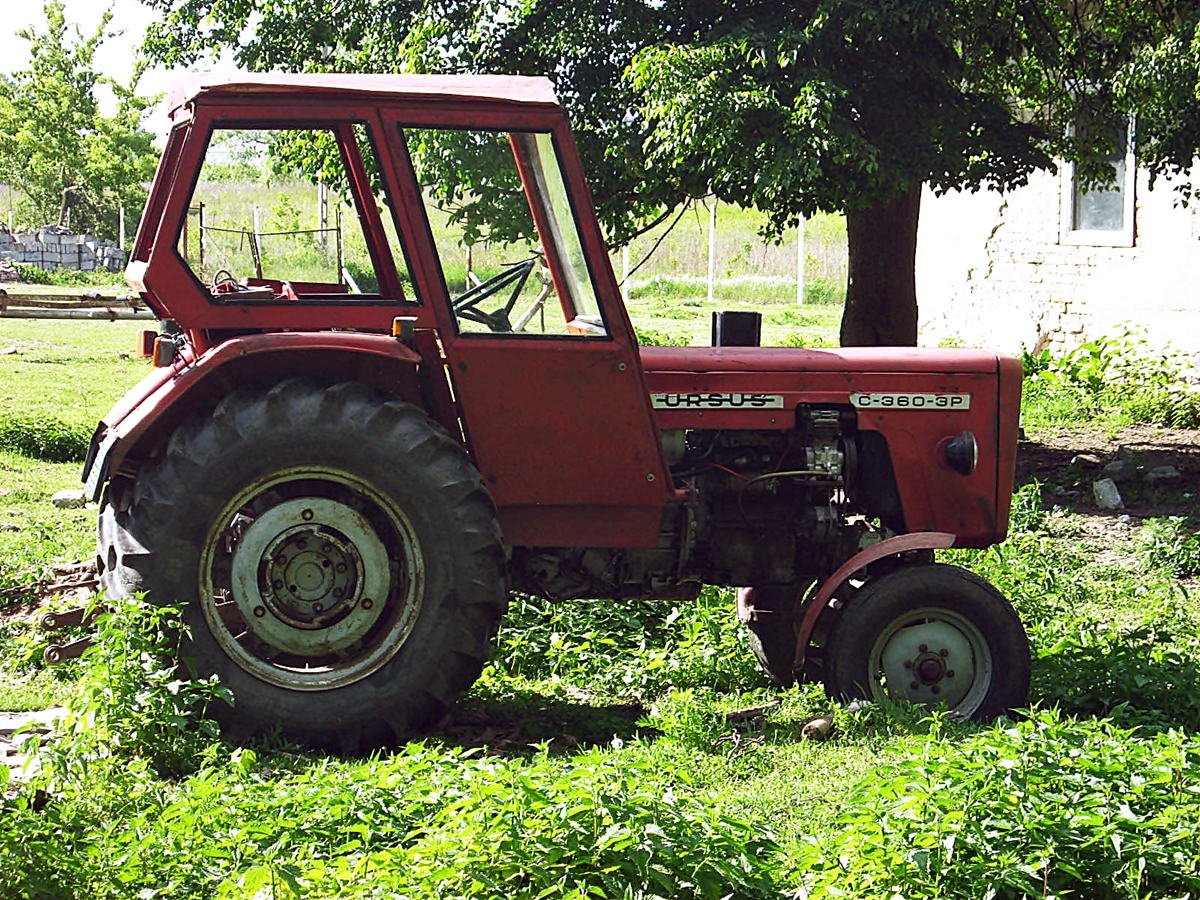

Ursus C-360-3P

Ursus C-360-3P — Utility tractor · 48 hp. Reference specifications; pending source verification.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
48 hp
Weight
2170 kg
Hover a source tag to verify

Overview

ManufacturerUrsusReference
Utility tractorReference
Built in Warsaw, PolandReference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Hydraulic drum brakesReference
Open operator station. Cab optional.Reference

Variants

C-360Ursus engineReference
C-360-3PPerkins engineReference

Engine

Perkins 2.5L 3-cyl AD3.152Reference
Fuel tank70.0 LReference
Engine35.4 kWReference
PerkinsReference
AD3.152Reference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke91 x 127 mmReference
Power35.4 kWReference
Rated RPM2250Reference
Torque165.0 NmReference
Torque RPM1400Reference
Starter typeelectricReference

Transmission

10-speedReference
Gears10 forward and 2 reverseReference
Oil capacity25.0 LReference
Five gears (1-5) plus reverse (R) in two ranges.Reference

PTO & Hydraulics

Pump flow20.1 lpmReference
Rear TypeIIReference
Rear lift1199 kgReference
Rear PTO Type540Reference

Dimensions

Wheelbase212 cmReference
Weight2170 kgReference
Front tire6.00-16Reference
Rear tire14.9-28Reference
Standard tires (ag)Front: 6.00-16. Rear: 14.9-28Reference
Length357 cmReference
Width180 cmReference
Shipping weight2170 kgReference
Ballasted weight3000 kgReference
Clearance (drawbar)35 cmReference
Front tread135 to 165 cmReference
Rear tread135/142/150/157/165/172/180 cmReference
Steering wheel162 cmReference

Ursus C-360-3P Height

Cab223 cmReference
Exhaust204 cmReference

Speeds

With 14.9/13-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
