Tractor · 1972Unverified
Ursus C-385
Ursus C-385 · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
9943 to 10910 pounds
Hover a source tag to verify
Overview
ManufacturerUrsusReference
Two- or four-wheel driveReference
Steeringpower assistReference
Differential hydraulic disc brakesReference
Variants

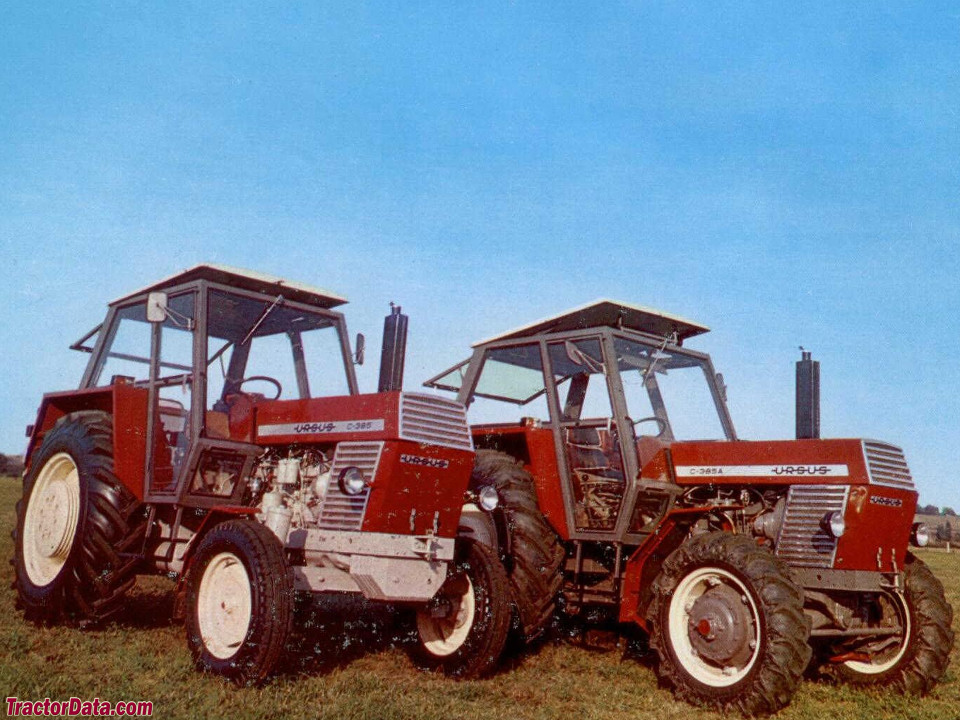

C-3852WDReference
C-385A4WDReference
Engine
4.6L 4-cyl dieselReference
4.6L 4-cylReference
Fuel tank90.1 LReference
Engine63.4 kWReference
Z-7501Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke110 x 120 mmReference
Power63.4 kWReference
Air cleanerdry two stageReference
Compression17:1Reference
Rated RPM2200Reference
Torque268.1 NmReference
Torque RPM1130Reference
turbochargedReference
Torque320.0 NmReference
Torque RPM1650Reference
Transmission
16-speed partial power shiftReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
A 8-forward and 4-reverse gearbox with a torque amplifier style power shift that doubles the available speeds.Reference
PTO & Hydraulics
Pump flow34.8 lpmReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase238 cmReference
Weight9943 to 10910 poundsReference
Front tire7.50-20Reference
Rear tire16.9-34Reference
Ag front7.50-20 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag rear16.9-34Reference
Length394 cmReference
Width193 cmReference
Height (cab)248 cmReference
2WD cab Weight4510 kgReference
4WD cab Weight4948 kgReference
Ground clearance41 cmReference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
