Tractor · 1980Unverified

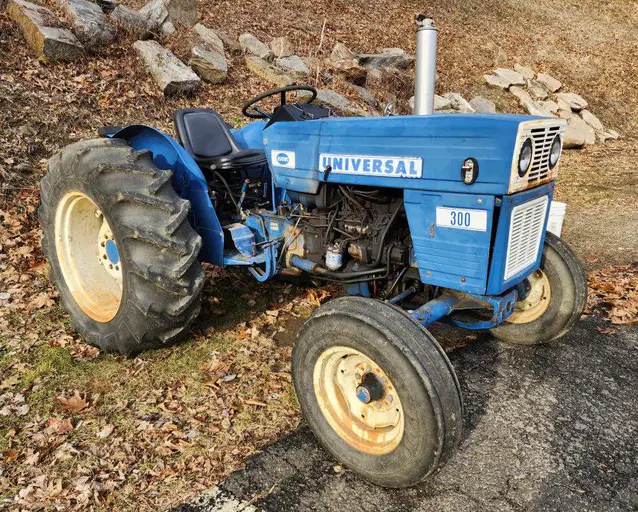

UTB/Universal 300

Name: UTB/Universal 300
Brand: UTB/Universal

UTB/Universal 300 — Utility tractor · 26 hp. Reference specifications; pending source verification.

The UTB/Universal 300 is a tractor with a rating of approximately 26 hp, categorising it as a lighter model within its class. Manufactured from 1980 to 1991, this model features a 2-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight ranges from 3508 to 4144 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

3508 to 4144 pounds

Catalogue coverage

Variants represented

Richest spec table

61 rows

Recorded power

26 hp

Recorded weight

1591 kg

Transmissions

9-speed constant mesh

Production years

1980-1991

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerUTB/UniversalReference

Utility tractorReference

Built in Brasov, RomaniaReference

Original price was $13,000 in 1991Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Steeringhydrostatic powerReference

Dry band brakesReference

Open operator station.Reference

Variants

300DTC4WDReference

Engine

UTB 1.6L 2-cyl dieselReference

Fuel tank54.1 LReference

Engine20.5 kWReference

UTBReference

dieselReference

2-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke95 x 110 mmReference

Power20.5 kWReference

Fuel systemdirect injectionReference

Compression17:1Reference

Rated RPM2400Reference

Torque76.1 NmReference

Torque RPM1500Reference

Starter volts12Reference

Starter power3.0 kWReference

Transmission

9-speed constant meshReference

Typeconstant meshReference

Gears9 forward and 3 reverseReference

Clutch254mm dry discsReference

Three gears (1-3) plus reverse (R) in three ranges (creeper, low, and high).Reference

PTO & Hydraulics

PTO (claimed)19.4 kWReference

Typeopen centerReference

Pump flow25.0 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift1202 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@1967Reference

Dimensions

2WD Wheelbase180 cmReference

4WD Wheelbase172 cmReference

Weight3508 to 4144 poundsReference

Front tire6.00-16Reference

2WD Rear tire14.9-28Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9-28Reference

4WD Standard tires (ag)Front: 7.50-20. Rear: 14.9-28Reference

2WD Length280 cmReference

4WD Length303 cmReference

2WD Height (steering wheel)149 cmReference

4WD Height (steering wheel)151 cmReference

2WD Weight1591 kgReference

4WD Weight1879 kgReference

2WD Ground clearance46 cmReference

4WD Ground clearance27 cmReference

UTB/Universal 300 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Speeds

With 12.4x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
