Tractor · 1988Unverified

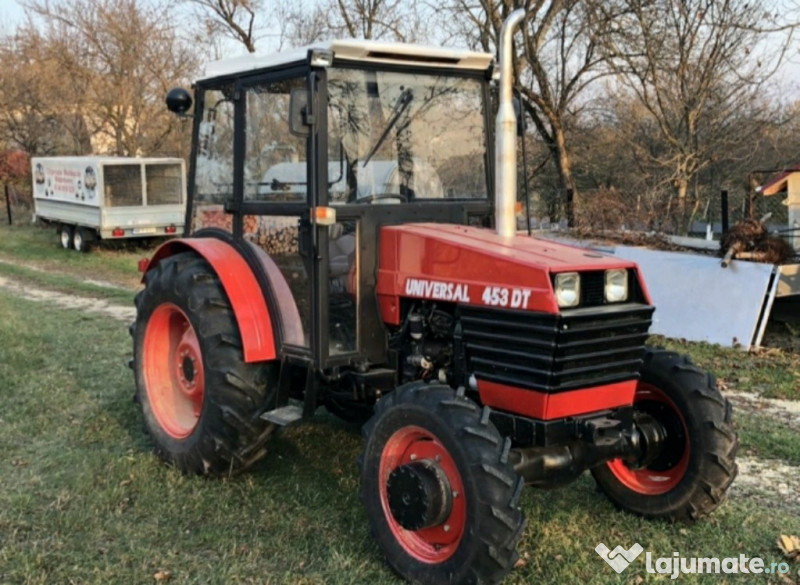

UTB/Universal 453
UTB/Universal 453 — 3 Series · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
5765 to 6393 pounds
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Original price$20,000 (2004)Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Dry band brakesReference
Two-post ROPS. Cab optional.Reference
Variants
453DT4WDReference
Engine
UTB 2.3L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine33.6 kWReference
UTB D115Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Power33.6 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Torque146.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Oil capacity6.8 LReference
Coolant capacity13.0 LReference
Transmission
8-speed constant meshReference
12-speed creeperReference
Typeconstant meshReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity23.0 LReference
Four gears (1-4) plus reverse (R) in two ranges (low and high).Reference
TypecreeperReference
Gears12 forward and 3 reverseReference
Optional creeper adds a third range to the basic transmission.Reference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
Typeopen centerReference
Valves1Reference
Pump flow36.7 lpmReference
Rear TypeII/IReference
Rear lift1696 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2160Reference
Dimensions
Wheelbase211 cmReference
Weight5765 to 6393 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6R-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6R-28Reference
4WD Standard tires (ag)Front: 7.50-20. Rear: 13.6R-28Reference
Length363 cmReference
Height247 cmReference
2WD Weight2615 kgReference
4WD Weight2899 kgReference
2WD Front tread139 to 199 cmReference
4WD Front tread140 to 150 cmReference
Rear tread140 to 191 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
Battery AH150Reference
Speeds
With 14.9-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
