Tractor · 1979Unverified

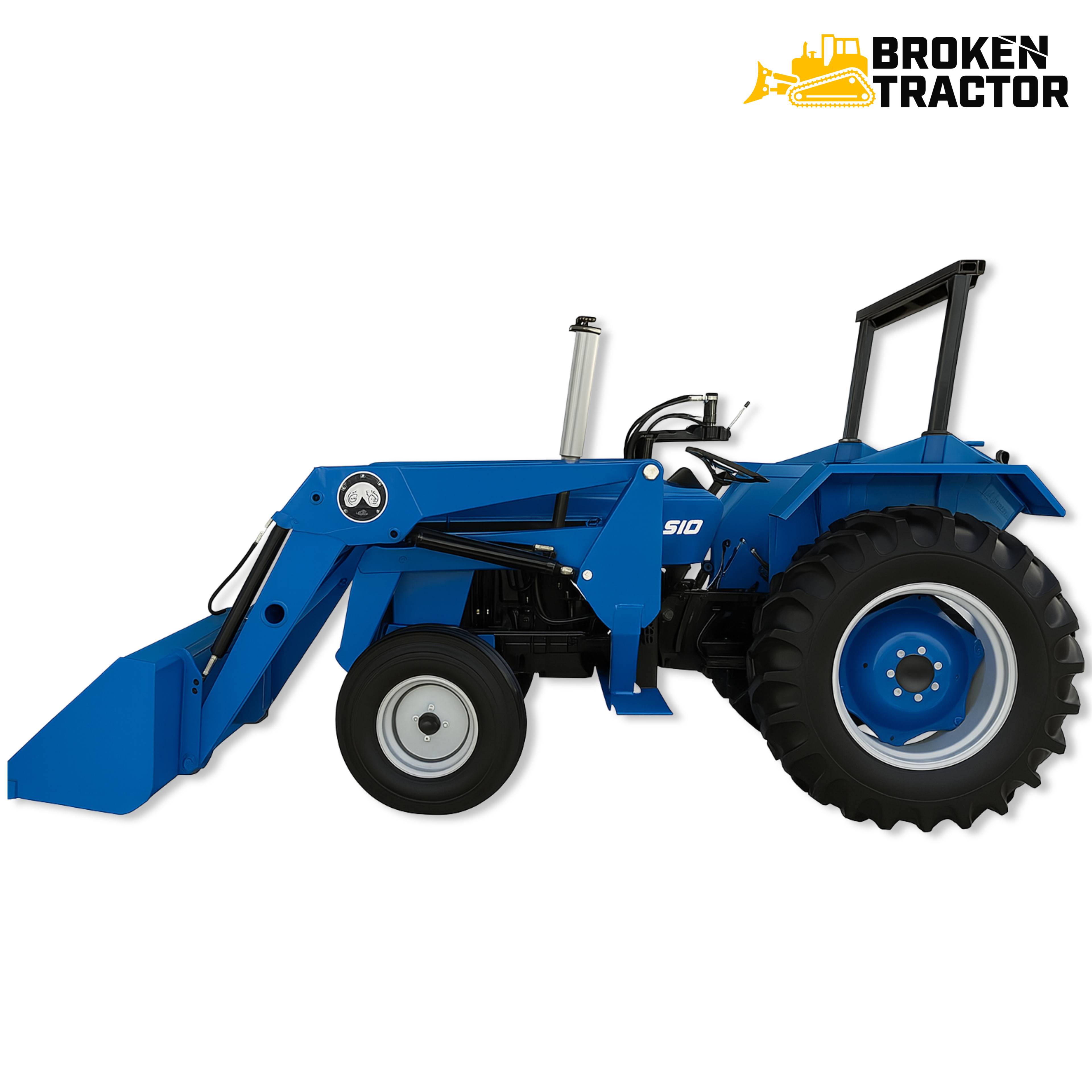

UTB/Universal 510
UTB/Universal 510 — Utility tractor · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
4230 to 5350 pounds
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Utility tractorReference
Built in Brasov, RomaniaReference
Original price was $10,500 in 1990Reference
The Universal Farm Group of Rowlett, Texas sold this model as the Universal 550.Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical band brakesReference
Two-post ROPS.Reference
Engine
UTB 2.7L 3-cyl dieselReference
Fuel tank54.1 LReference
Drawbar (claimed)31.3 kWReference
UTBReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity9.7 LReference
Coolant capacity13.2 LReference
Transmission
8-speed partially synchronizedReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
Typeopen centerReference
Pressure147.1 barReference
Valves1Reference
Pump flow37.9 lpmReference
Rear TypeII/IReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2160Reference
Dimensions
2WD Wheelbase192 cmReference
4WD Wheelbase198 cmReference
Weight4230 to 5350 poundsReference
Front tire6.50x16Reference
2WD Rear tire14.9x28Reference
2WD Standard tires (ag)Front: 6.50x16. Rear: 14.9x28Reference
4WD Standard tires (ag)Front: 9.50x20. Rear: 14.9x28Reference
Lawn/turf front7.50x16Reference
Lawn/turf rear18.4x16.1Reference
2WD Length295 cmReference
4WD Length311 cmReference
2WD Weight1918 kgReference
4WD Weight2426 kgReference
2WD Ground clearance46 cmReference
4WD Ground clearance39 cmReference
2WD Front tread132 to 200 cmReference
4WD Front tread140 cmReference
Rear tread119 to 190 cmReference
UTB/Universal 510 Height
2WD Hood137 cmReference
4WD Hood145 cmReference
2WD ROPS229 cmReference
4WD ROPS231 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
