Tractor · 1985Unverified

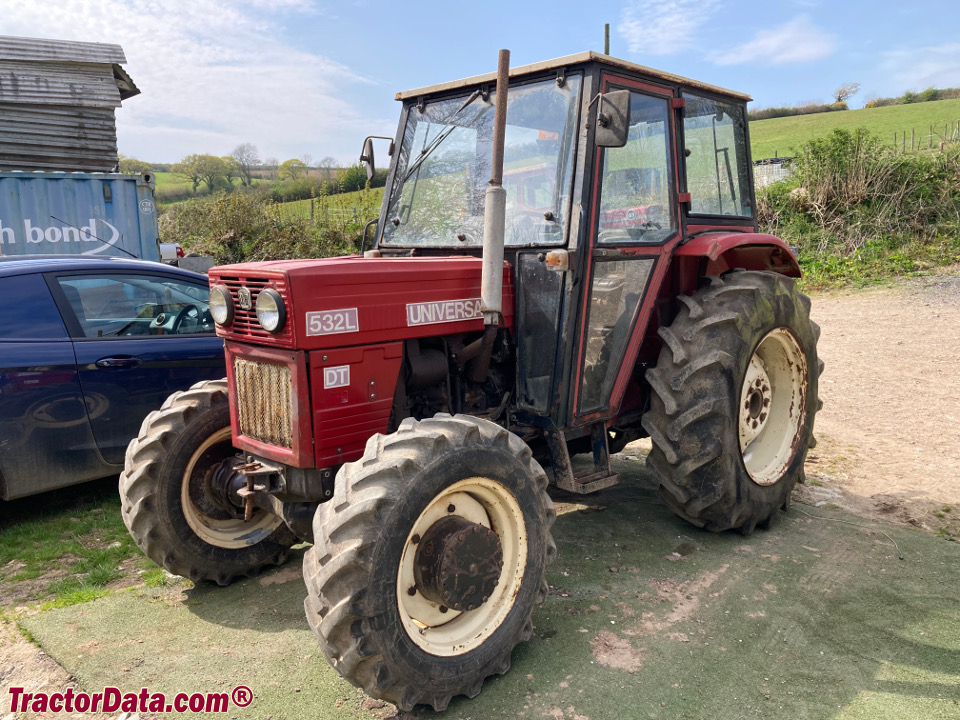

UTB/Universal 532
UTB/Universal 532 · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
5842 to 6393 pounds
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Built in Brasov, RomaniaReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic band brakesReference
Cab standard.Reference
Variants
532DT4WDReference
Engine
UTB 2.7L 3-cyl dieselReference
Engine39.5 kWReference
UTB D-115Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power39.5 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
12-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
TypecreeperReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Pressure150.0 barReference
Pump flow31.0 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1733 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase200 cmReference
Weight5842 to 6393 poundsReference
Front tire6.00-16Reference
2WD Rear tire14.9-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 14.9-28Reference
4WD Standard tires (ag)Front: 7.5-20. Rear: 14.9-28Reference
Length324 cmReference
Width202 cmReference
Height (cab)260 cmReference
Height (exhaust)249 cmReference
2WD Weight2649 kgReference
4WD Weight2899 kgReference
Ground clearance26 cmReference
2WD Front tread139 to 199 cmReference
4WD Front tread139 cmReference
Rear tread160 to 189 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
