Tractor · Unverified

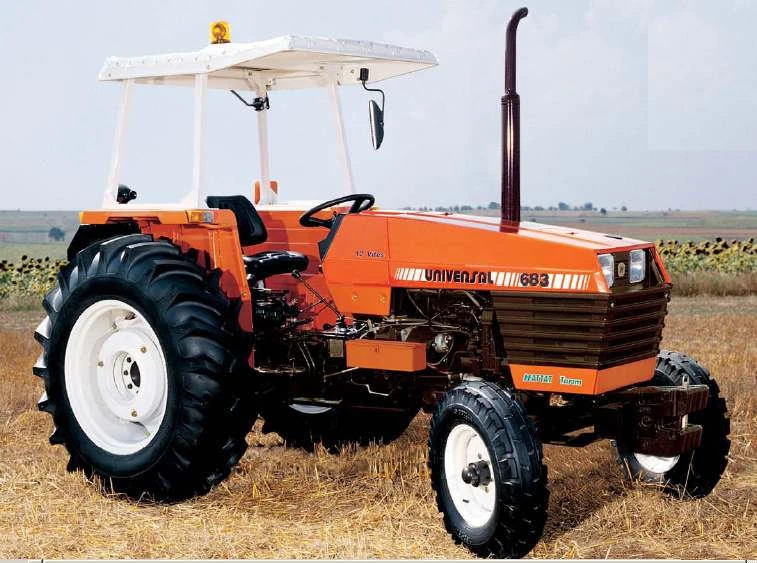

UTB/Universal 683
UTB/Universal 683 — ???? - 2004 · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Built in Brasov, RomaniaReference
Two- or four-wheel driveReference
Engine
UTB 3.8L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine50.7 kWReference
UTBReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke102 x 115 mmReference
Power50.7 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Pump flow32.0 lpmReference
Rear lift2399 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Front tire7.50-18Reference
Rear tire16.9R30Reference
Ag front7.50-18Reference
Ag front11.2R24 (4WD)Reference
Ag rear16.9R30Reference
Length255 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
