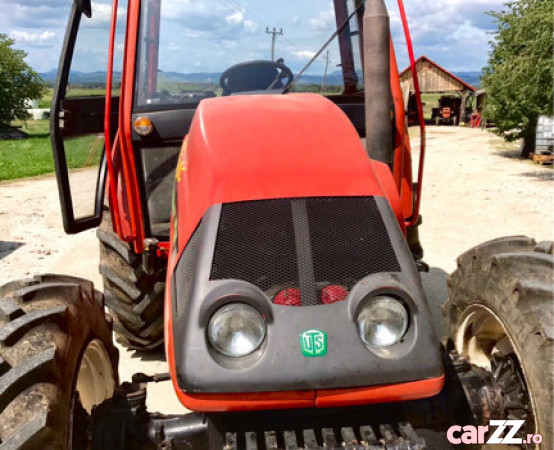

The UTB/Universal 684 is a tractor with a rated power of 68 hp, a mid-range figure for its class. Under the hood is a 4-cylinder diesel engine, paired with mechanical front-wheel drive with a 12-speed gearbox. It suits operations of up to 200 ac. The available specification table below shows both UK and US units.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
68 hp
Transmissions
12-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Built in Brasov, RomaniaReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
UTB 3.8L 4-cyl dieselReference
Fuel tank64.0 LReference
Engine50.7 kWReference
UTBReference
dieselReference
4-cylinderReference
Displacement3.8 LReference
Bore/Stroke102 x 115 mmReference
Power50.7 kWReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
12-speedReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
Valves2Reference
Pump flow33.0 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540,1000Reference
Dimensions
Front tire11.2R24Reference
Rear tire16.9R30Reference
Ag front11.2R24Reference
Ag rear16.9R30Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
