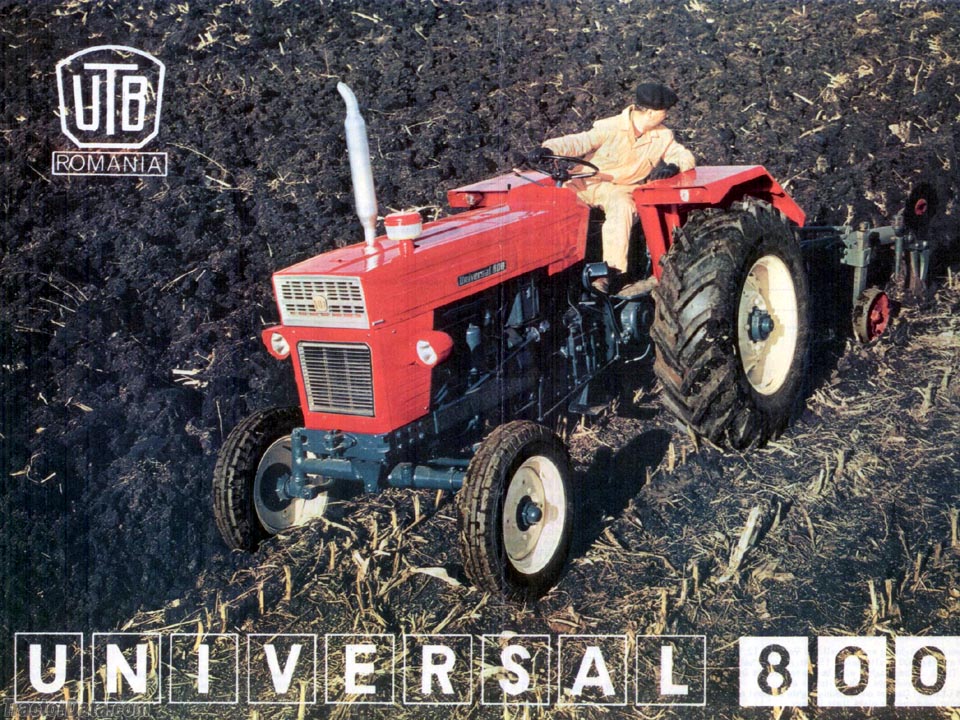

The UTB/Universal 800 is a tractor with an 80 hp rating, positioning it within its class in terms of power output. This model was produced between 1983 and 1984. It features a 4-cylinder diesel liquid-cooled engine, coupled with a mechanical front-wheel drive system and a 16-speed gearbox. The tractor's listed weight is 3700 kg, suitable for applications of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
3700 kg
Catalogue coverage
Variants represented
2
Richest spec table
55 rows
Recorded power
80 hp
Recorded weight
3700 kg
Transmissions
16-speed gear
Production years
1983-1984
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerUTB/UniversalReference
Built in Brasov, RomaniaReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (800DT)Reference
Differential lockmechanical rearReference
Steeringhydraulic powerReference
Dry disc brakesReference
Trailer brakesaur brakes optionalReference
Open operator station. Cab optional.Reference
Variants
8002WDReference
800DT4WDReference
Engine
UTB 4.9L 4-cyl dieselReference
Fuel tank98.0 LReference
Engine59.7 kWReference
UTB D-118Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke110 x 130 mmReference
Power59.7 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2200Reference
Torque299.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
16-speed gearReference
TypegearReference
Gears16 forward and 4 reverseReference
Clutchdry discReference
Four gears (1-4) plus reverse (R) with two sets of high-low ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2199 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase243 cmReference
Weight3700 kgReference
Front tire6.50/5.50-20Reference
Rear tire18.4-30Reference
Ag front6.50/5.50-20Reference
Ag rear18.4-30Reference
Length407 cmReference
Height (steering wheel)189 cmReference
Ground clearance48 cmReference
Front tread132 to 192 cmReference
Rear tread150 to 210 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Battery AH153Reference
Speeds
With 18.4-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
