Tractor · 1994Unverified

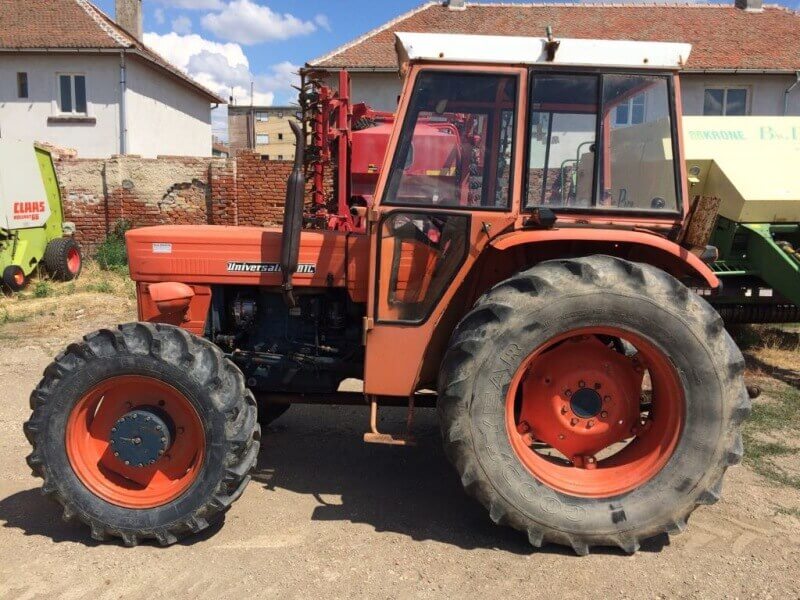

UTB/Universal 853

Name: UTB/Universal 853
Brand: UTB/Universal

UTB/Universal 853 — 3 Series · 78 hp. Reference specifications; pending source verification.

The UTB/Universal 853 is a tractor with a rated output of 78 hp, positioning it in the middle of its class in terms of power. This model was manufactured from 1994 to 2004. It features a 4-cylinder turbocharged diesel liquid-cooled engine, transmitting power through four-wheel drive with a 16-speed gearbox. The listed weight of the UTB/Universal 853 ranges between 6515 and 7253 pounds, and it is suited to jobs covering areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

78 hp

Weight

6515 to 7253 pounds

Catalogue coverage

Variants represented

Richest spec table

58 rows

Recorded power

78 hp

Recorded weight

2955 kg

Transmissions

16-speed

Production years

1994-2004

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerUTB/UniversalReference

Utility tractorReference

Built in Brasov, RomaniaReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard.Reference

Engine

UTB 3.8L 4-cyl dieselReference

Fuel tank62.1 LReference

Engine63.4 kWReference

UTB D2404.050Reference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke102 x 115 mmReference

Power63.4 kWReference

Air cleaneroil bathReference

Compression17:1Reference

Rated RPM2400Reference

Idle RPM600-2550Reference

Torque286.0 NmReference

Torque RPM1700Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.0 LReference

Coolant capacity14.0 LReference

Transmission

16-speedReference

Gears16 forward and 4 reverseReference

Oil capacity52.1 LReference

PTO & Hydraulics

PTO (claimed)58.2 kWReference

Pressure172.4 barReference

Pump flow40.9 lpmReference

Rear TypeIIReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@2160Reference

Engine RPM1000@2400Reference

Dimensions

2WD Wheelbase219 cmReference

4WD Wheelbase220 cmReference

Weight6515 to 7253 poundsReference

Front tire7.5-20Reference

2WD Rear tire13.6R-36Reference

2WD Standard tires (ag)Front: 7.5-20. Rear: 13.6R-36Reference

4WD Standard tires (ag)Front: 12.5-20. Rear: 16.9R-30Reference

Length359 cmReference

Height (cab)250 cmReference

2WD Weight2955 kgReference

4WD Weight3289 kgReference

2WD Front tread139 to 198 cmReference

4WD Front tread137 to 157 cmReference

Rear tread152 to 228 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

Speeds

With 16.9R30 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
